High efficiency Semi Automatic PET Blowing Machine 2L 800BPH MSTS800B

Master Packing Co.,Ltd. High efficiency Semi Automatic PET Blowing Machine 2L 800BPH MSTS800B

Semi Automatic PET Blowing Machine 2L 800BPH MSTS800B

Master Semi Automatic PET Blowing Machine 2L 800BPH MSTS800B with advantage of stable performance, easy for maintenance and repair,high efficiency.

Master packing supply bottle blowing mold and preform and cap injection mold. Our quick change blow mold can save a lot of time and effort on change mold.



High efficiency Semi Automatic PET Blowing Machine 2L 800BPH MSTS800B DetailsMaster Packing Co.,Ltd.

Master Automatic Blow Molding Machine UNIT Semi Automatic
2000 3000 10L 5000B 20L
Molding Number of Cavity Cavities 2 2 1 2 1
Heating Preform Spacing mm 40 40 80 200 200
Clamping Stroke mm 135 170 220 220 340
Cavity Spacing mm 152.4 152.4   225
Container Max.Bottle Volume ltr 2 3 10 5 20
Max. Neck Diameter mm 42 42 48 65 65
Max. Bottle Diameter mm 100 100 220 180 280
Max. Bottle Height mm 350 350 420 350 500
THEORETICAL OUTPUT BPH 800(500ML) 600(2L) 300(5L) 550(5L) 100(20L)
ELECTRICAL
SYSTEM
Max.heating power kw 11 11 11 11 54
AIR SYSTEM Operating pressure kg/cm² 8 8 8 8 8
Blowing Pressure kg/cm² 25 25 30 30 30
Max.capacity of air flow m³/Min 0.6 0.6 1 1 1
MACHINE Machine size Meter 1.4X0.56X1.52 1.4X0.56X1.52 1.55X0.56X1.52 1.65X0.66X1.8 2.1X0.66X1.8
Machine weight KGS 500 500 600 850 1000

1.The actual output depends on the preform quality and bottle shape.
2.Specifications are subject to change without notice.
3.Output depends upon bottle shape and preform quality.

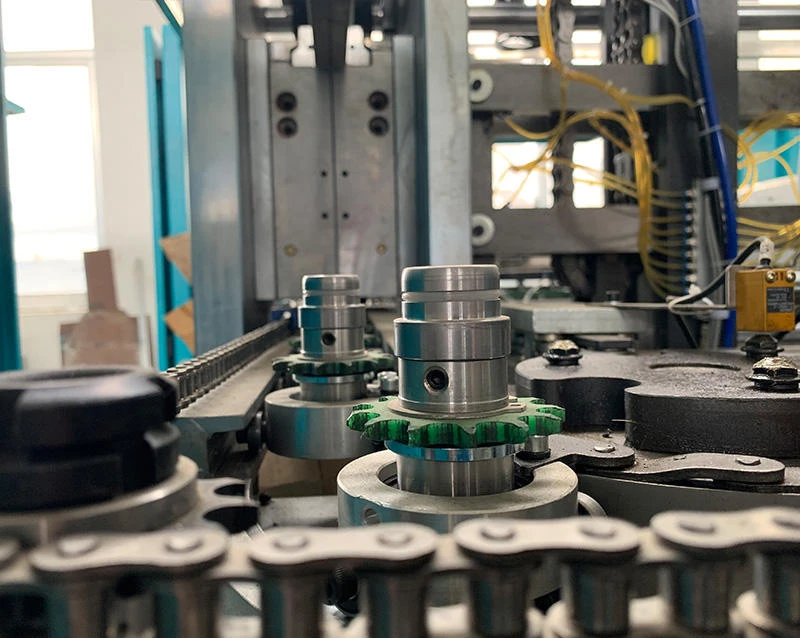

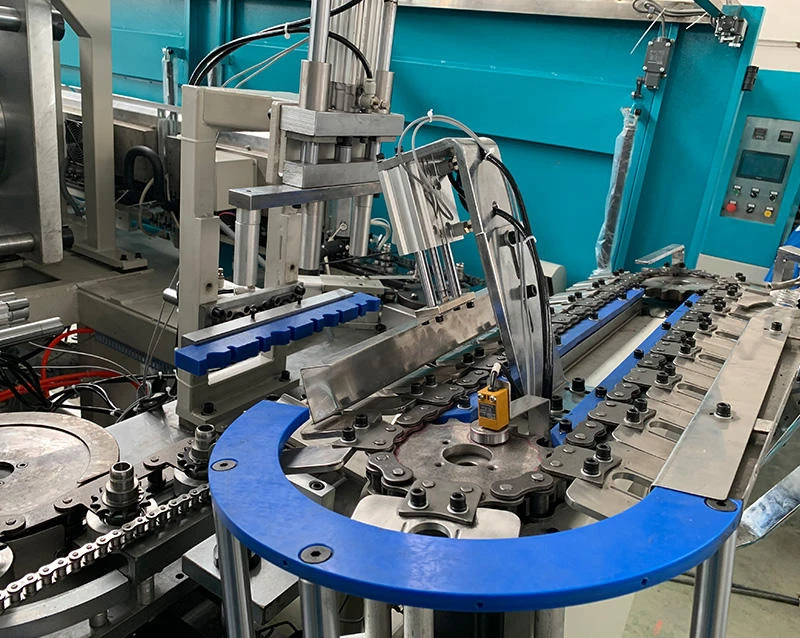

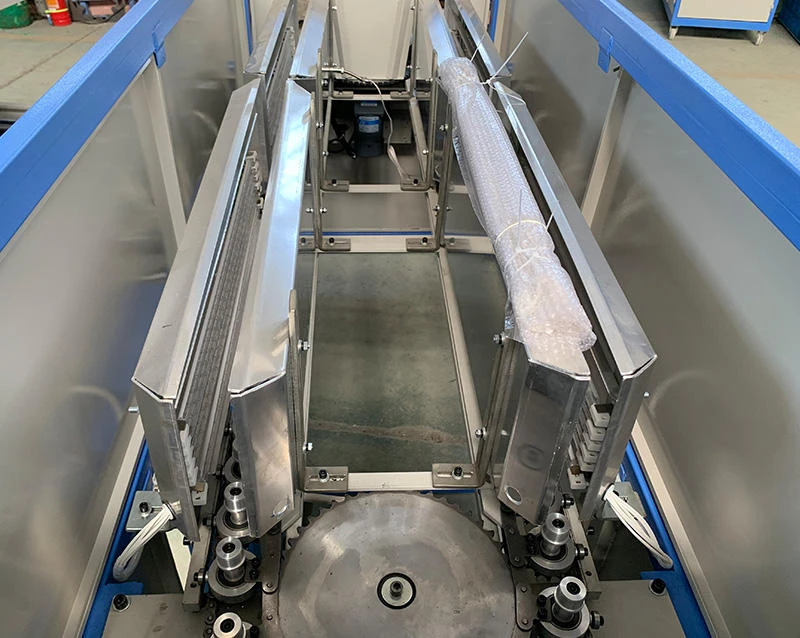

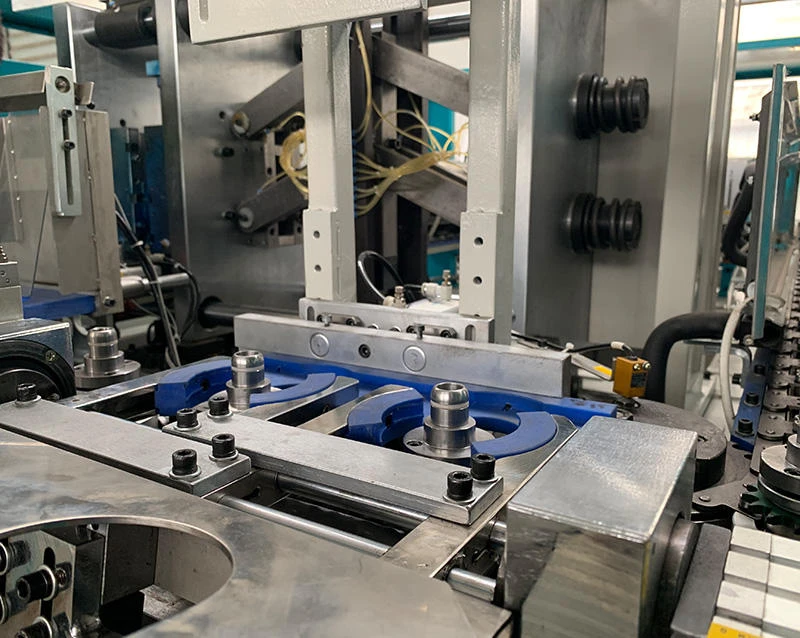

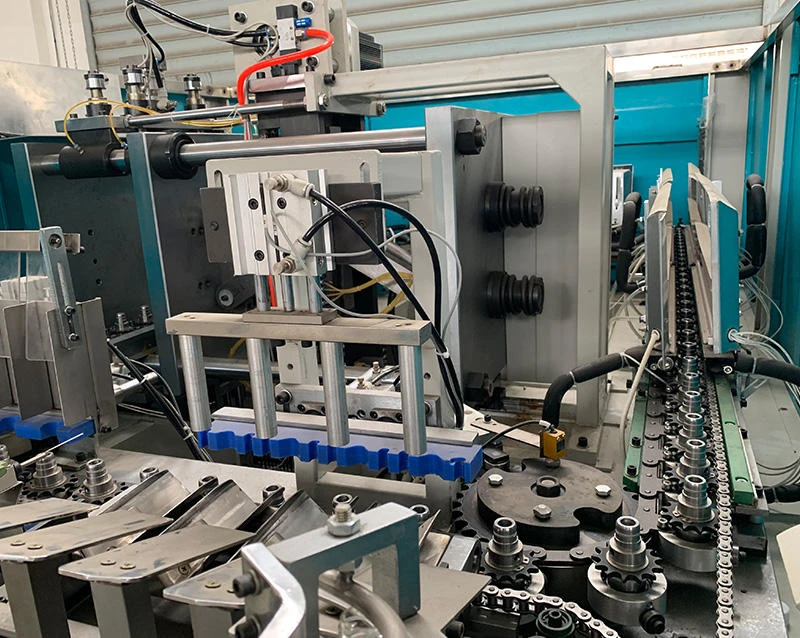

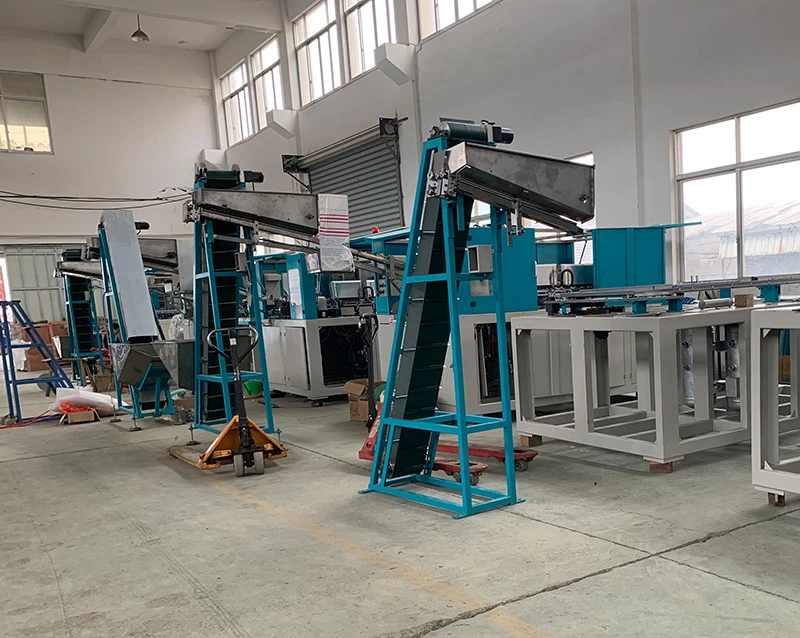

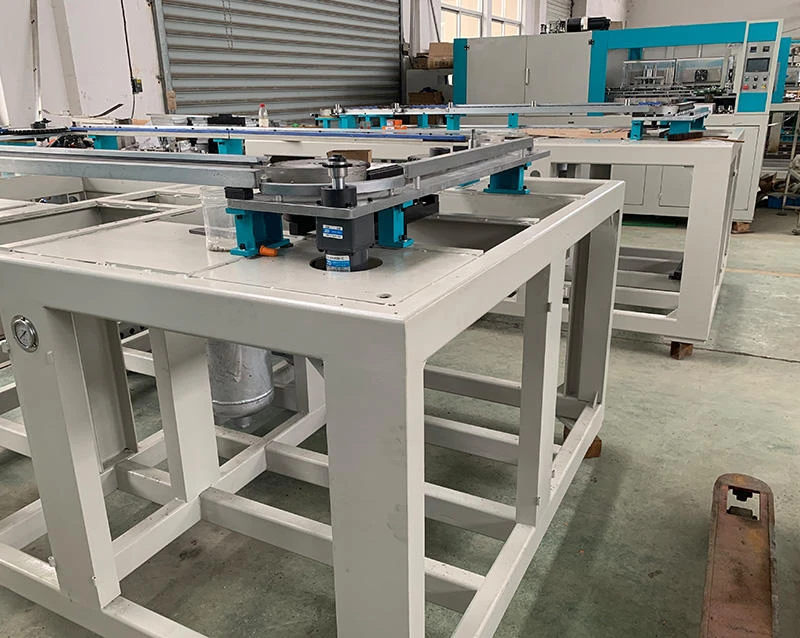

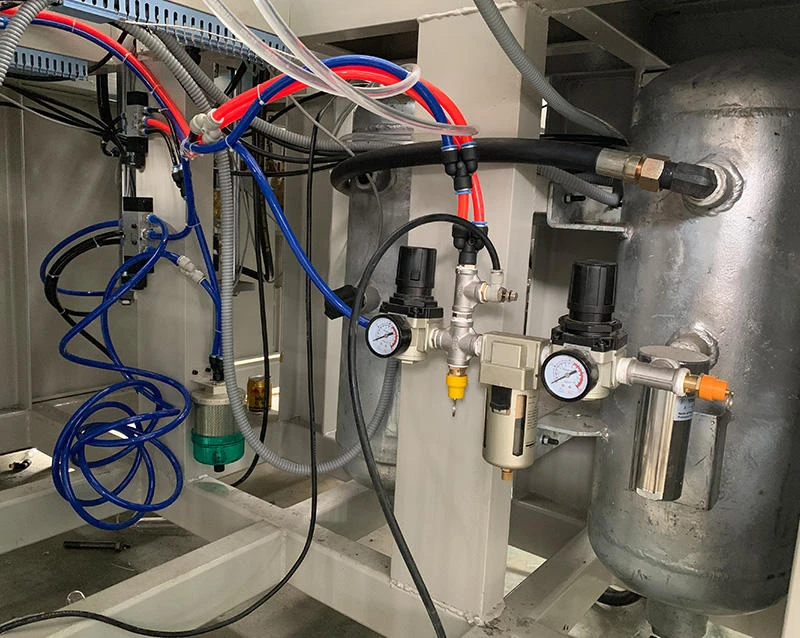

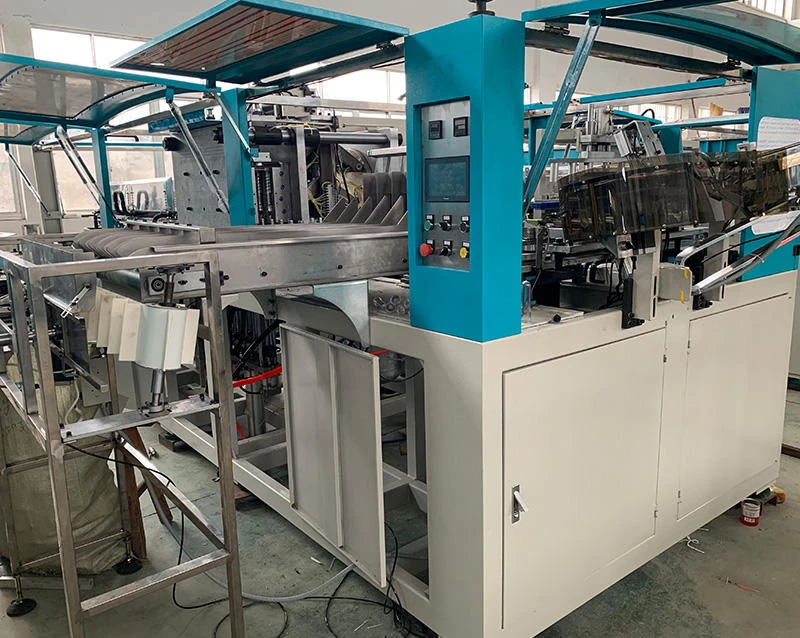

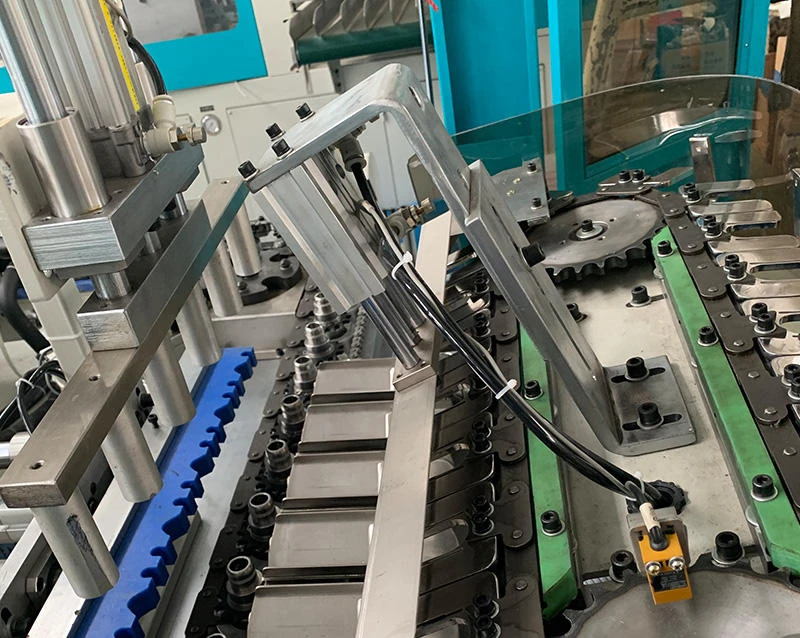

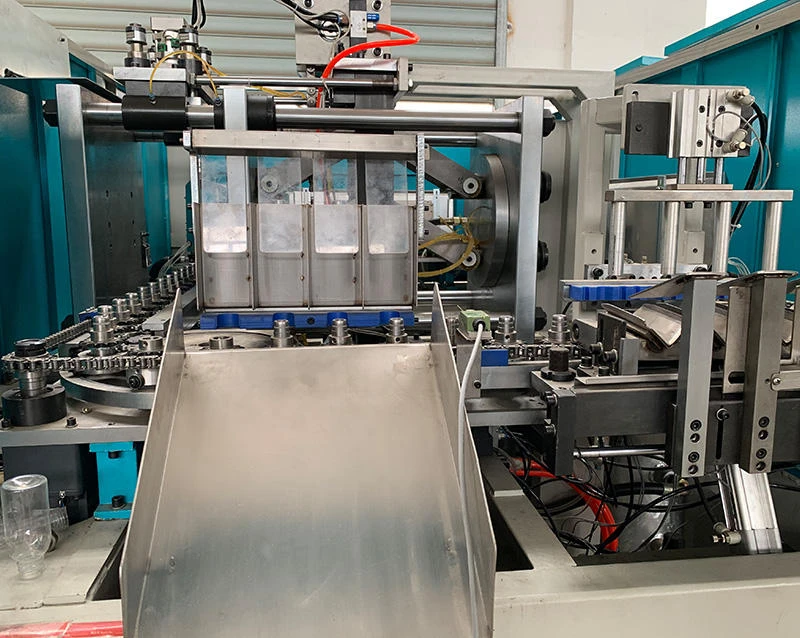

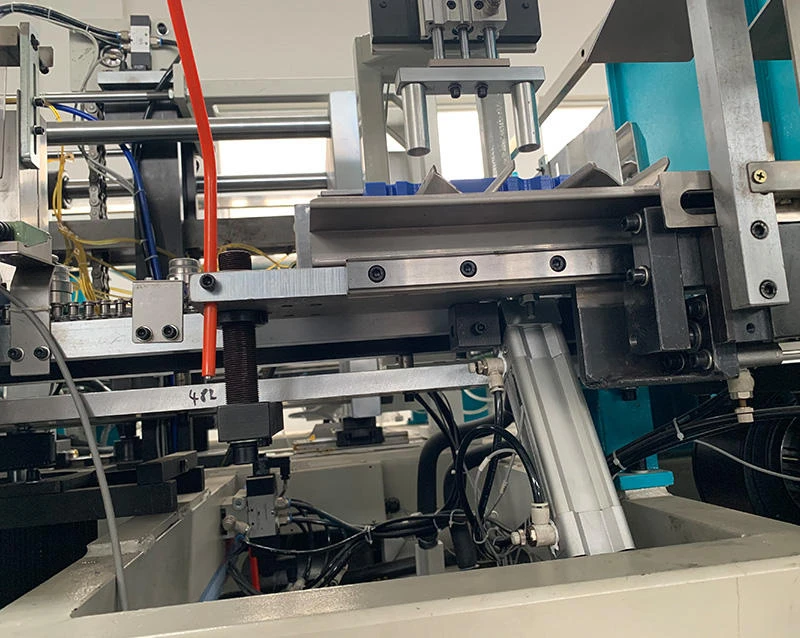

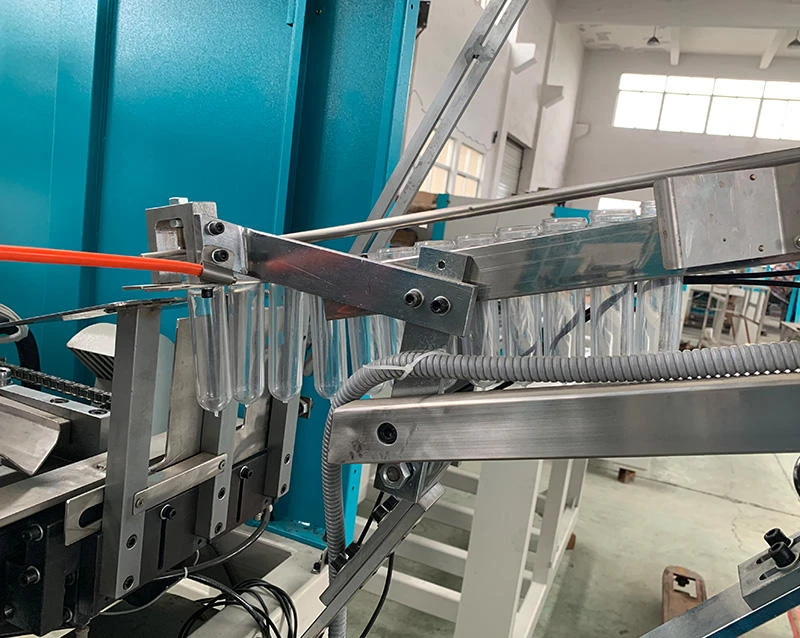

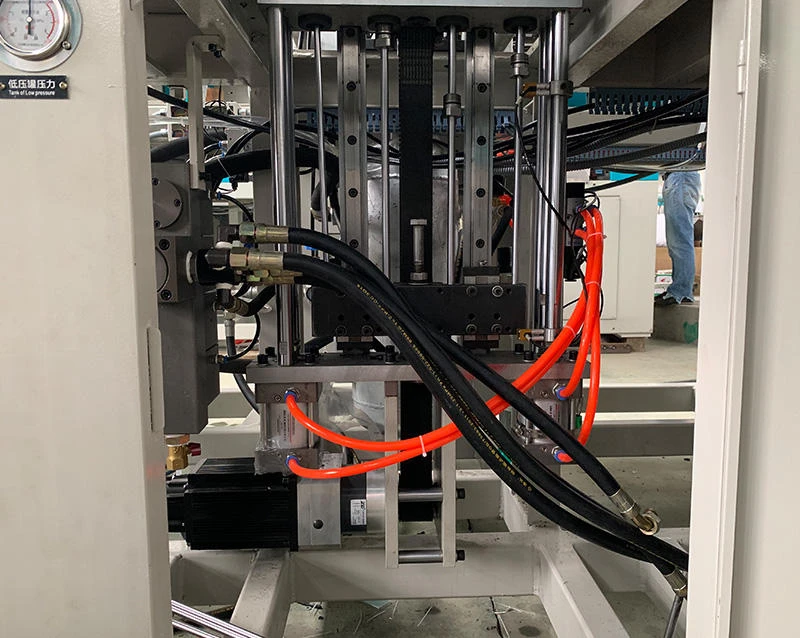

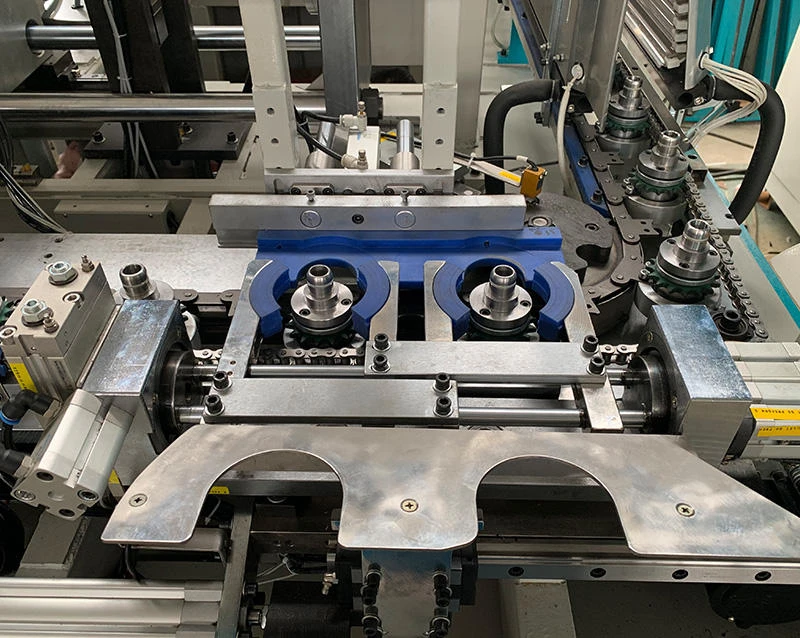

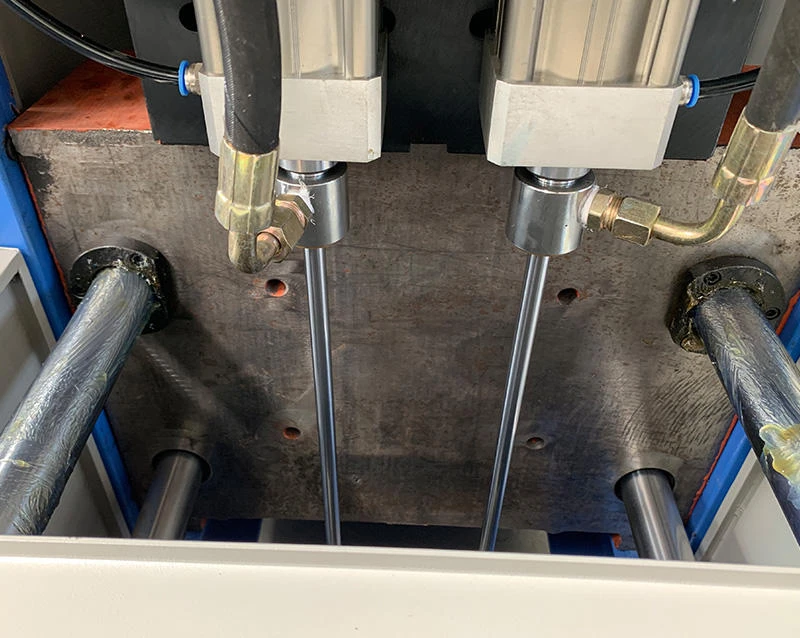

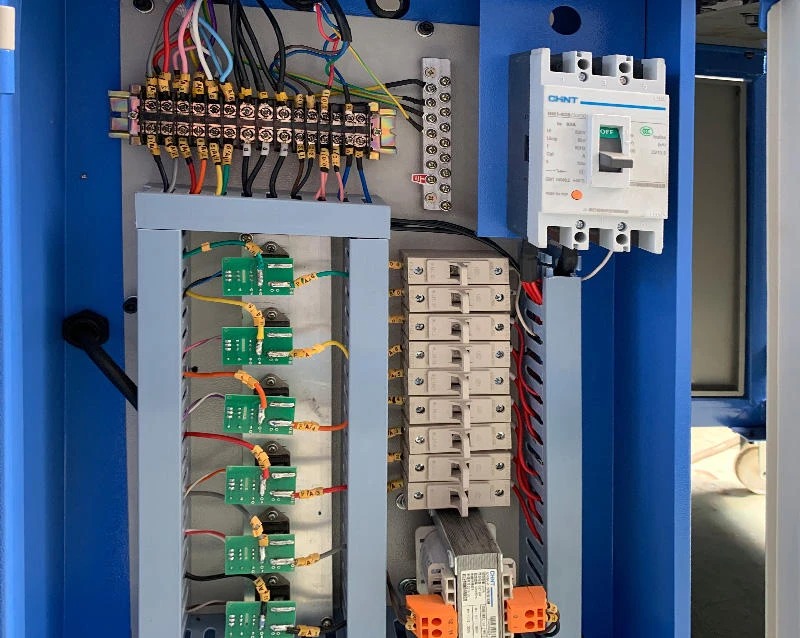

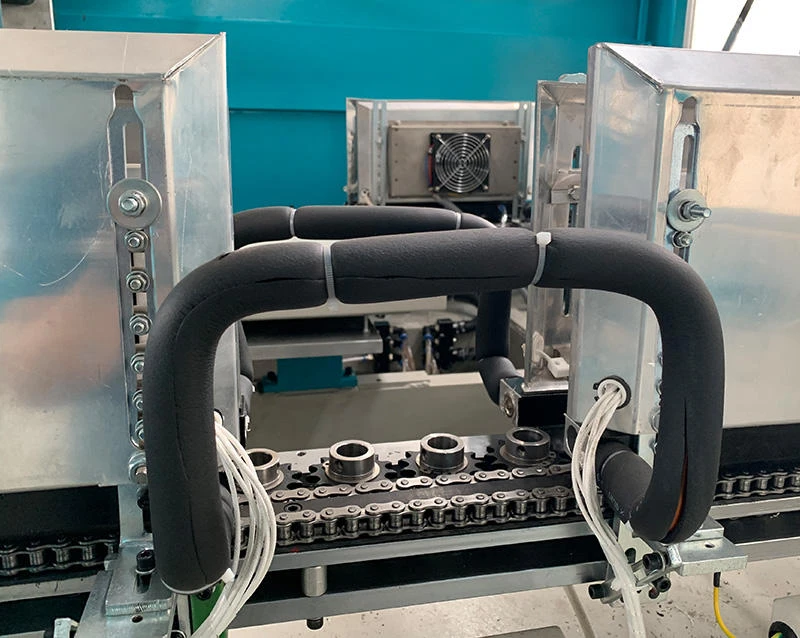

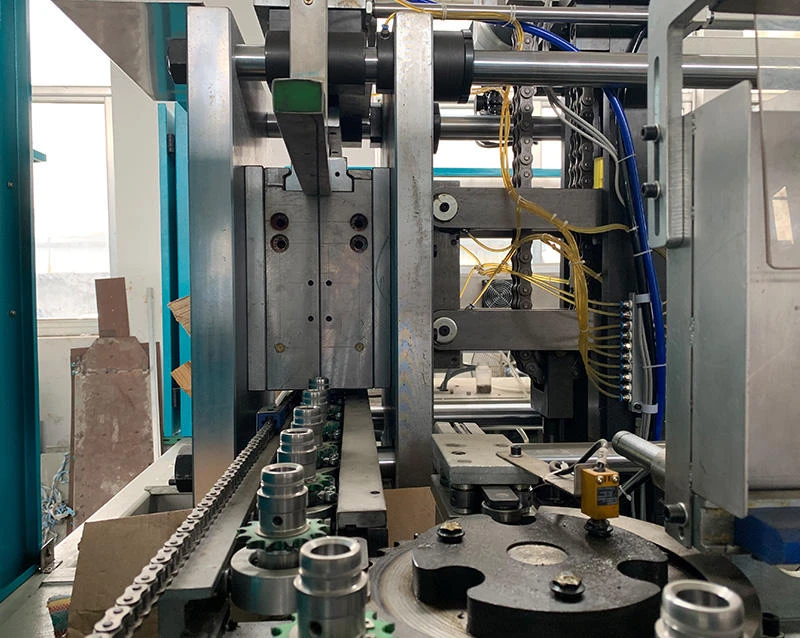

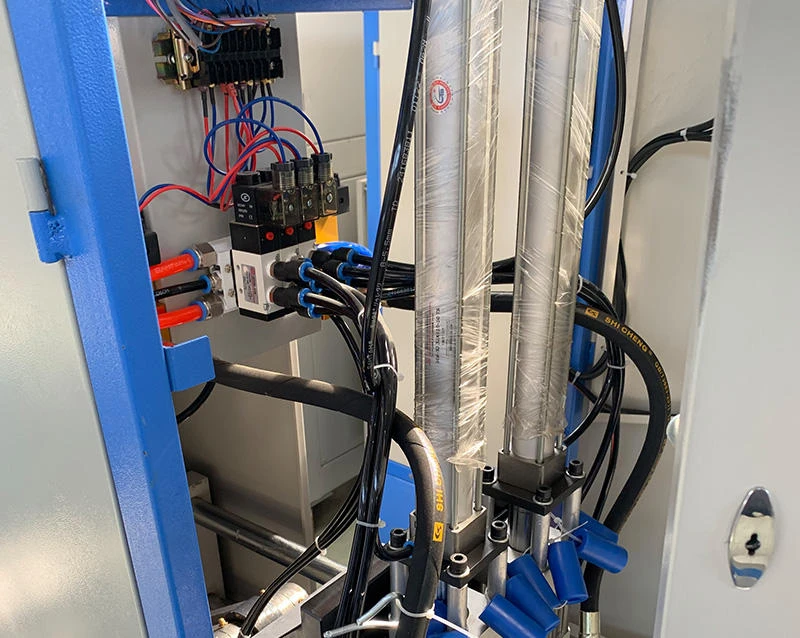

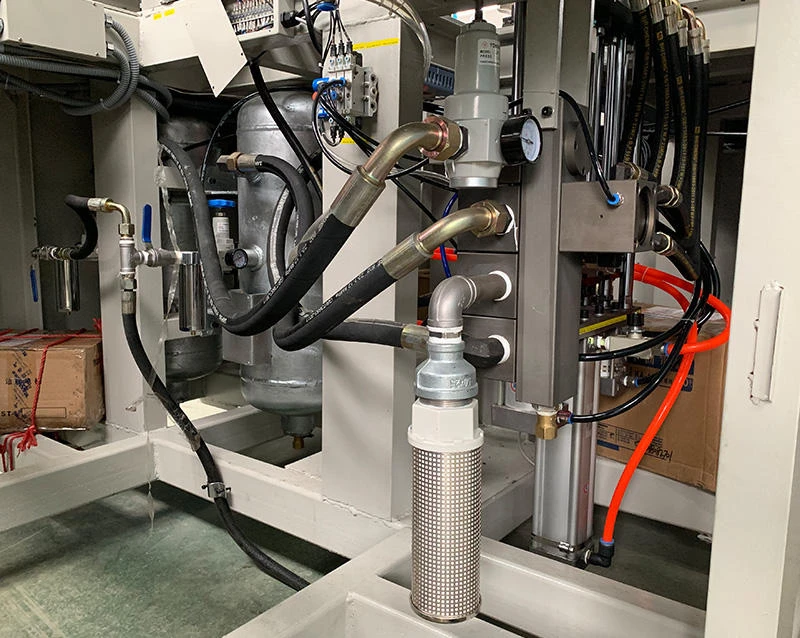

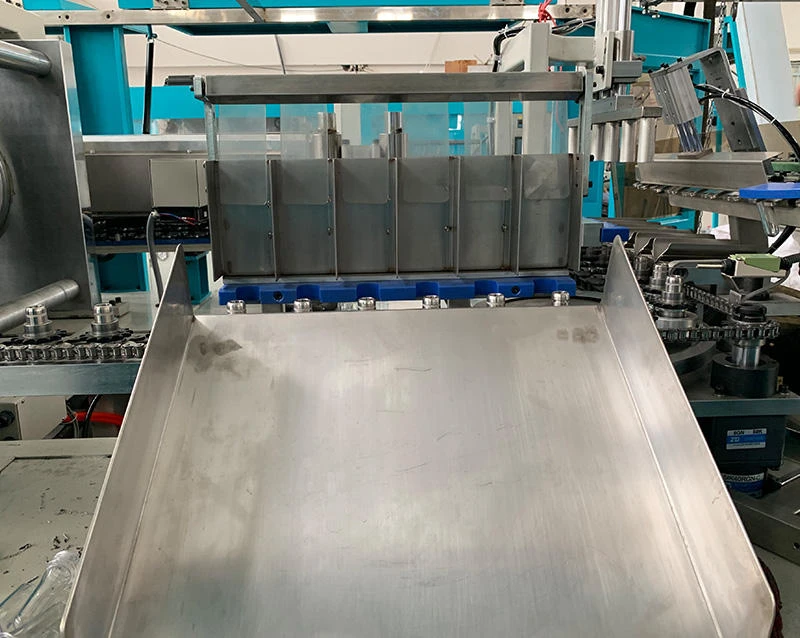

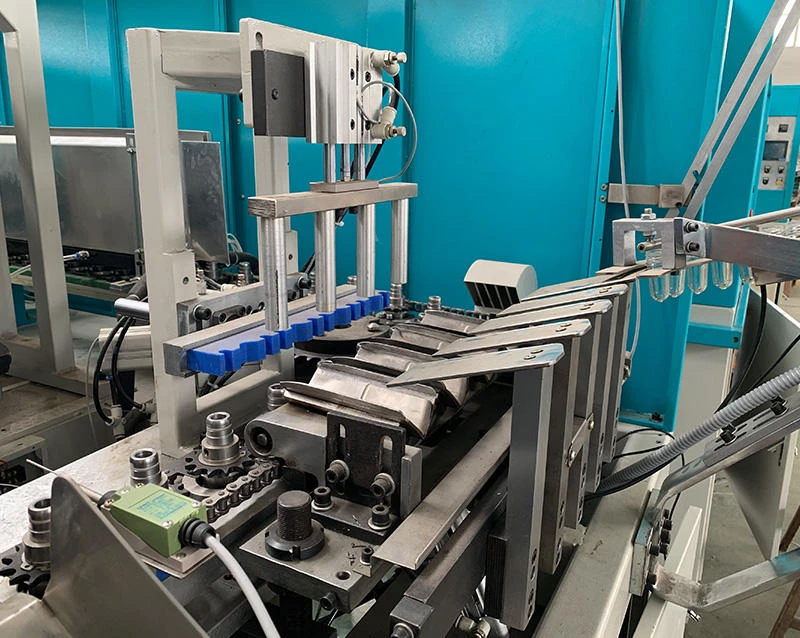

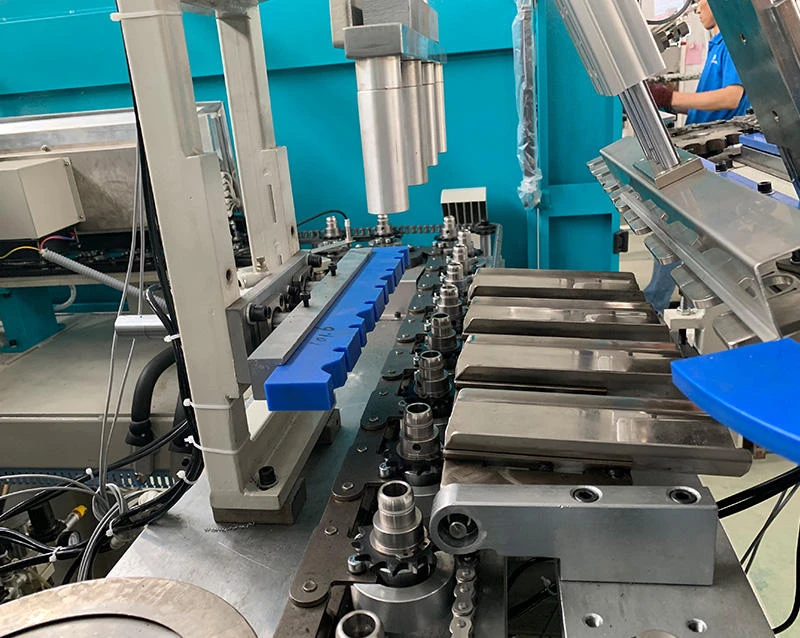

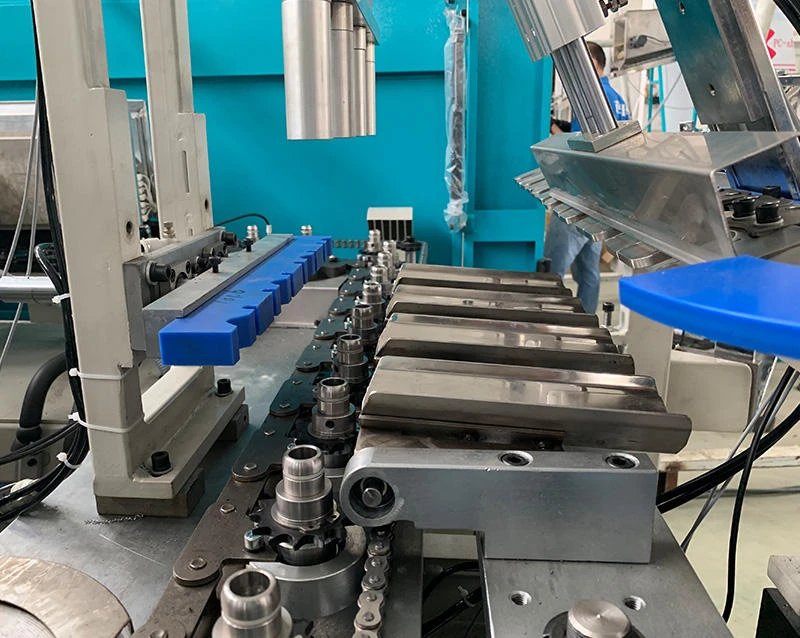

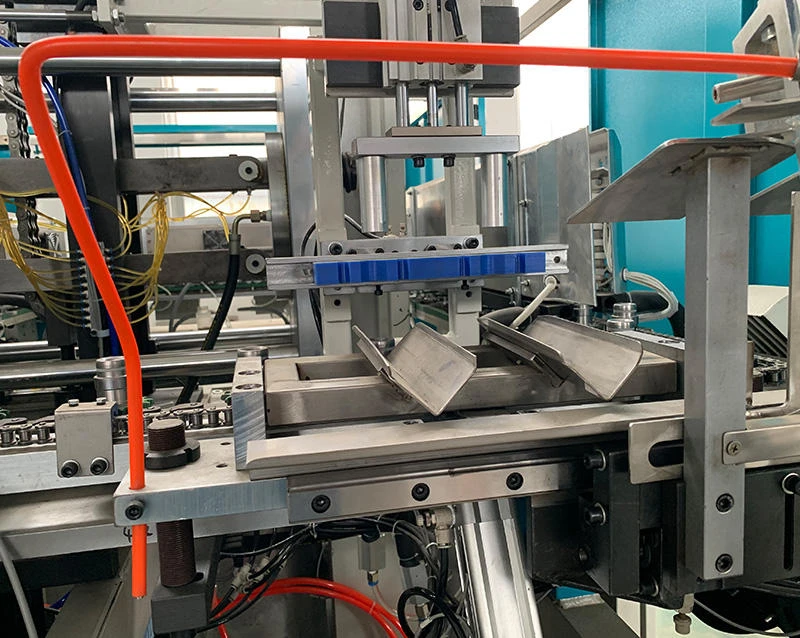

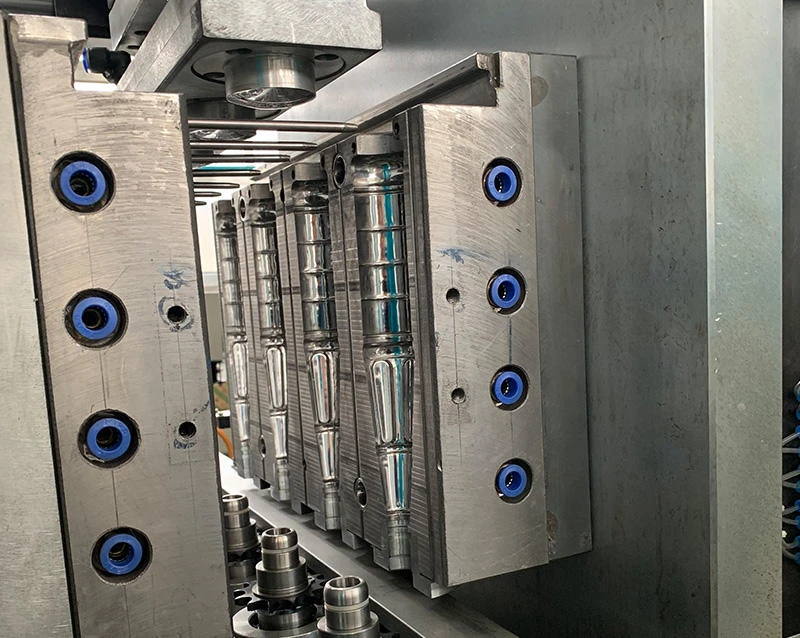

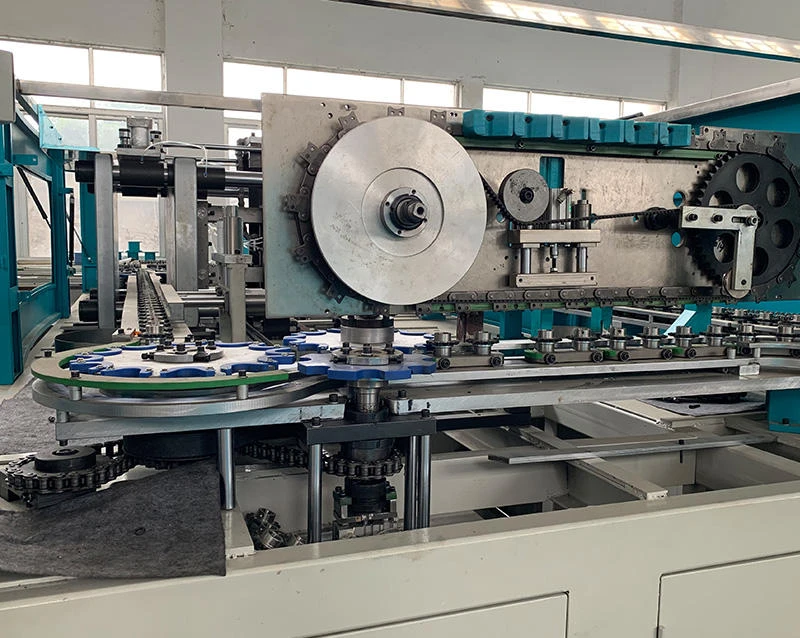

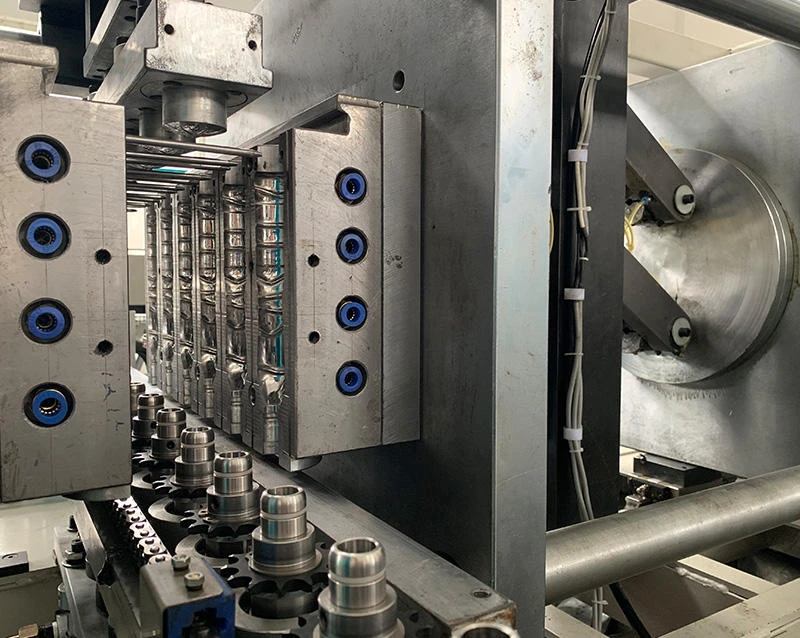

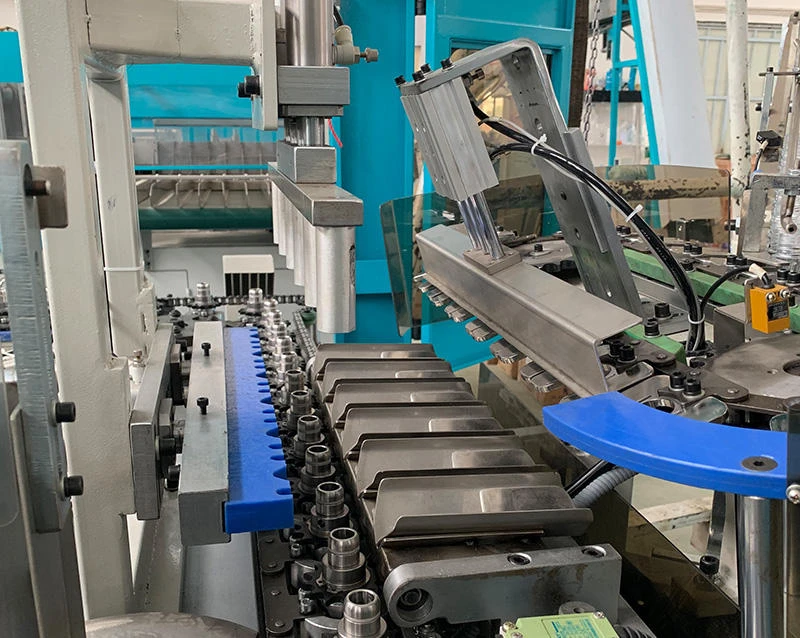

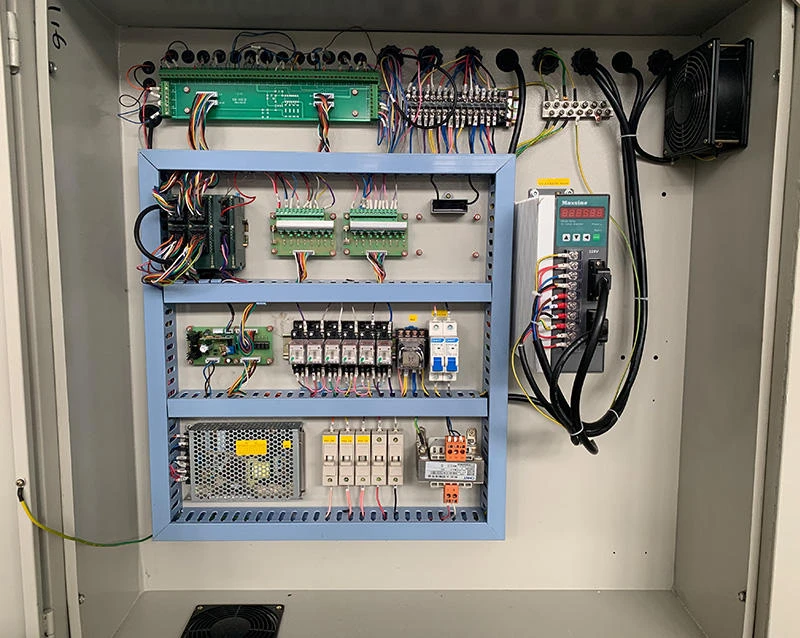

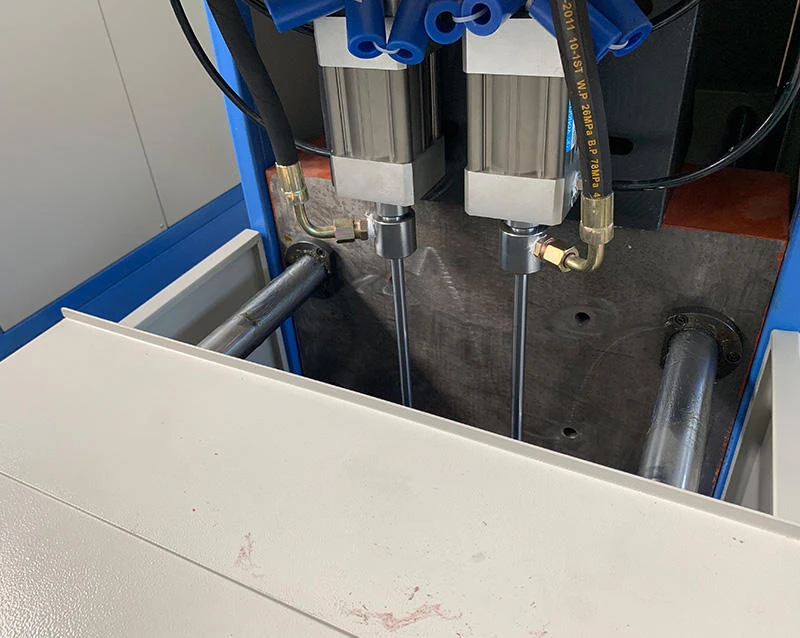

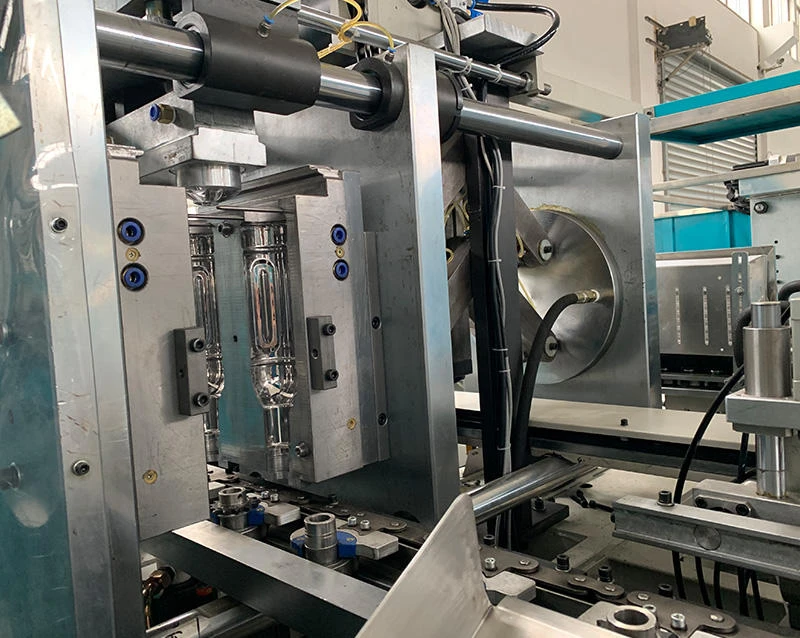

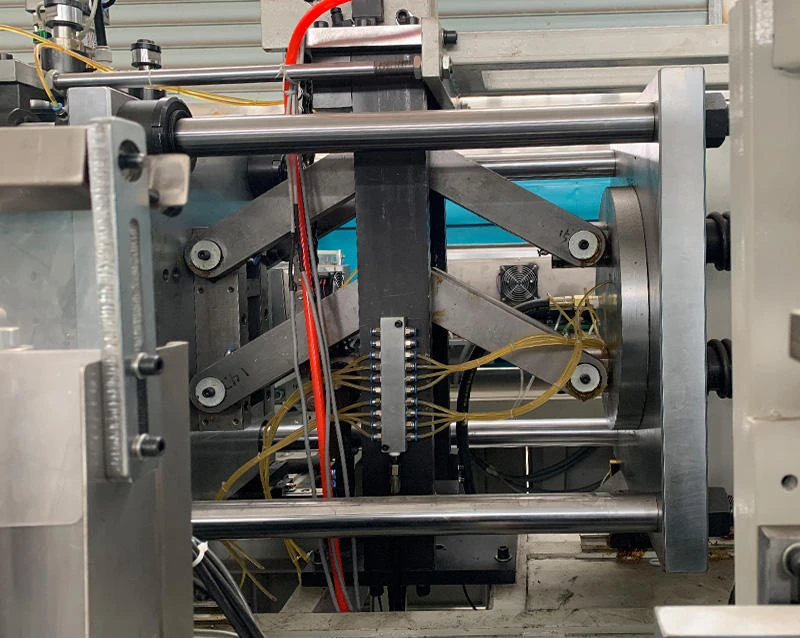

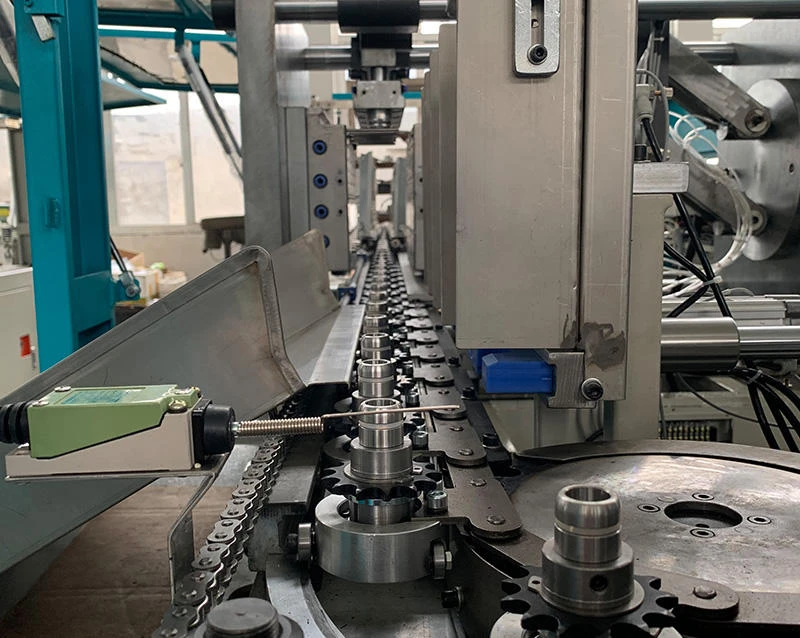

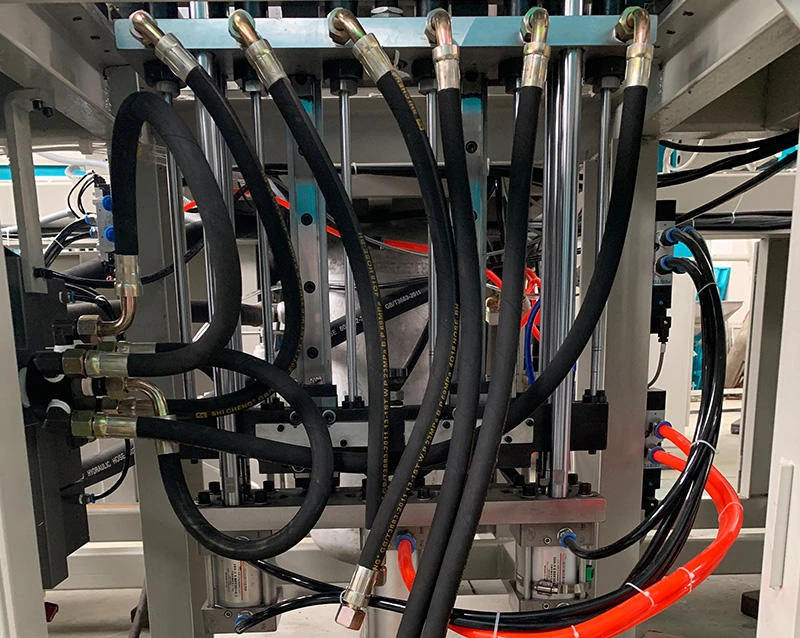

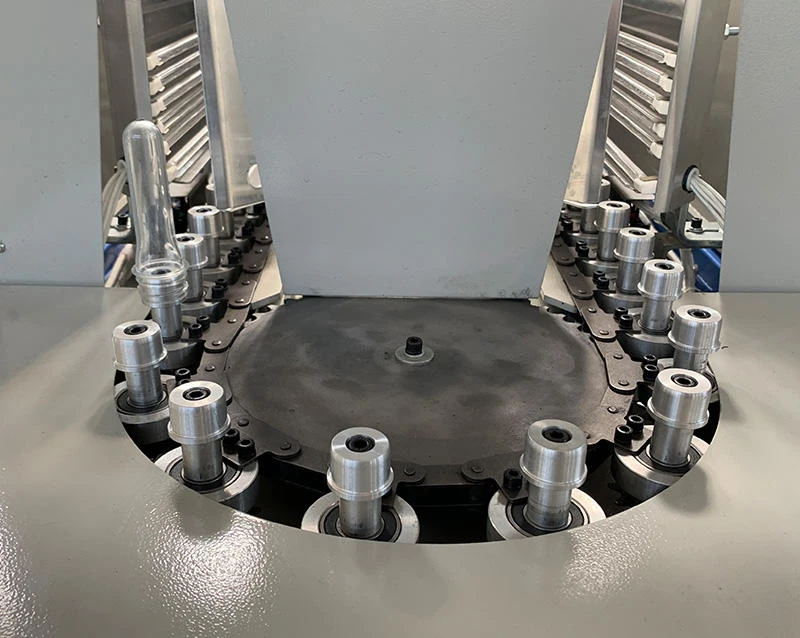

Detail ShowMaster Packing Co.,Ltd.

Shipping PackageMaster Packing Co.,Ltd.

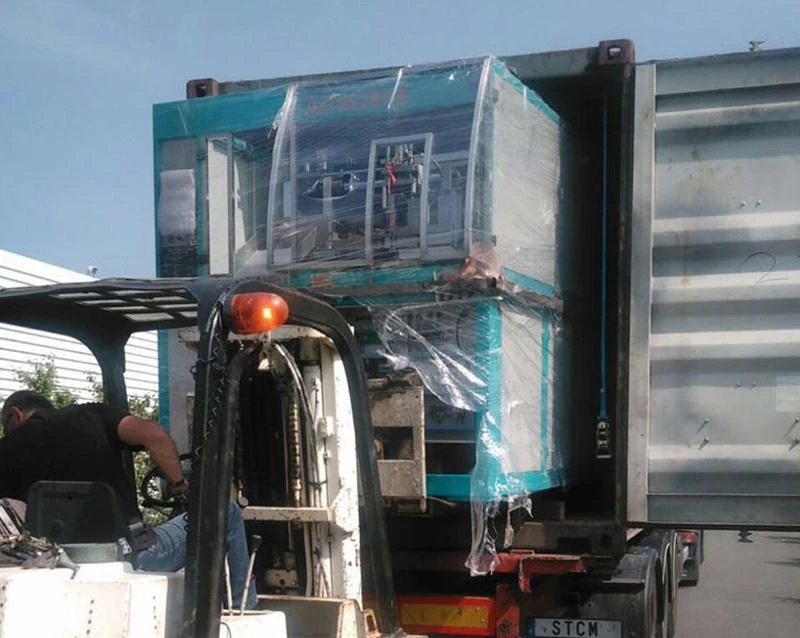

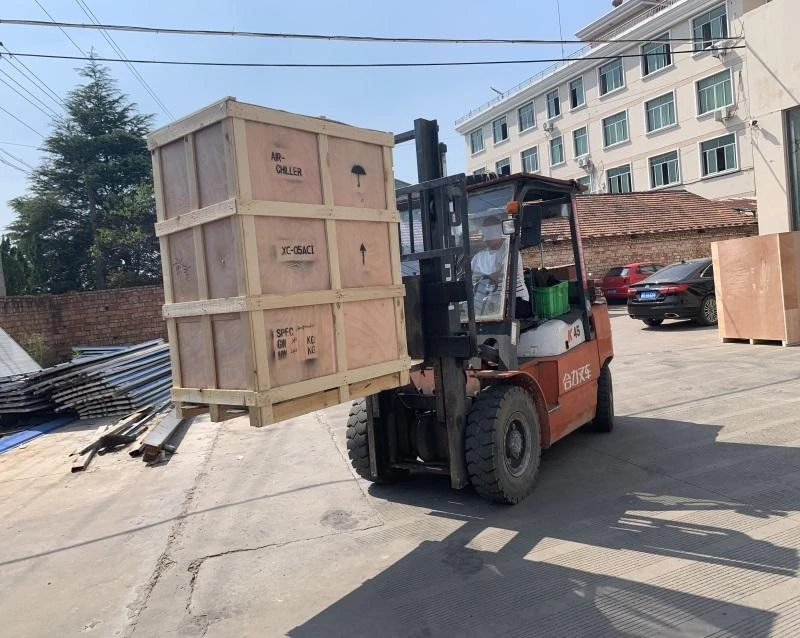

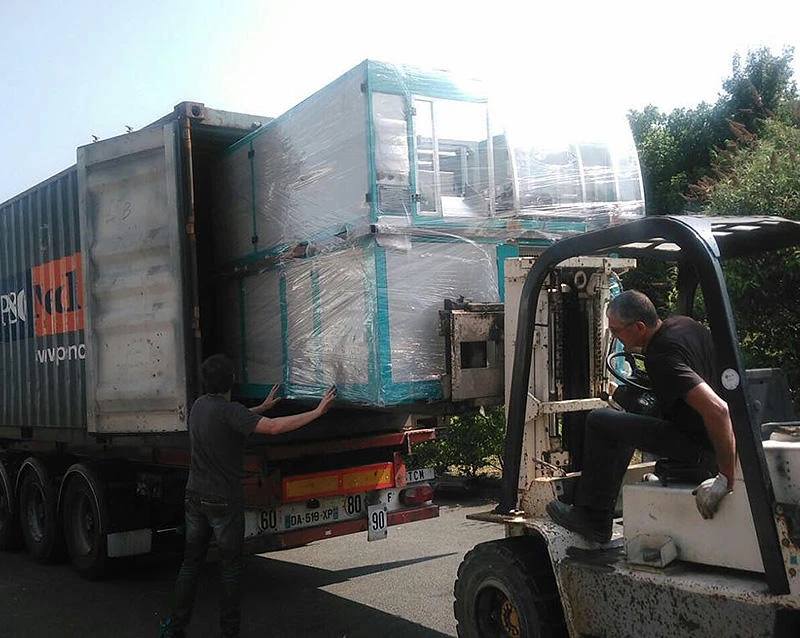

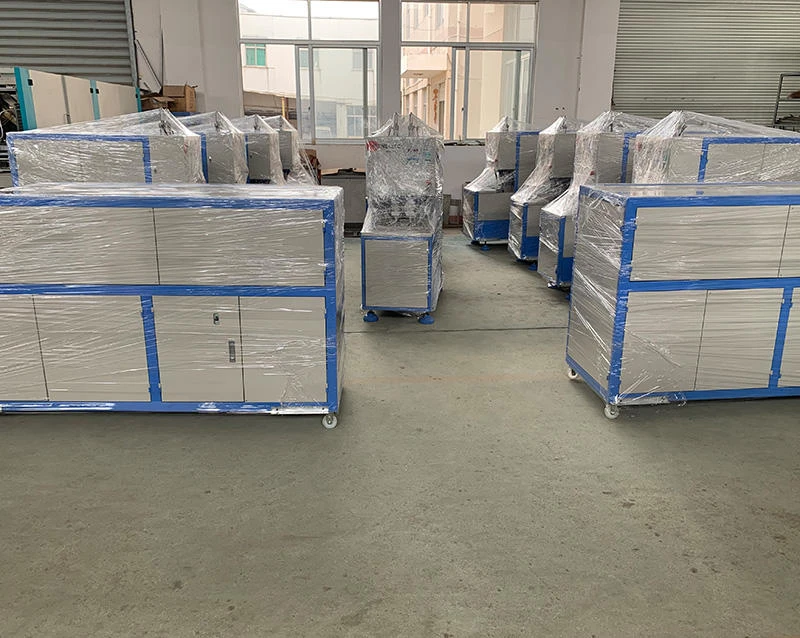

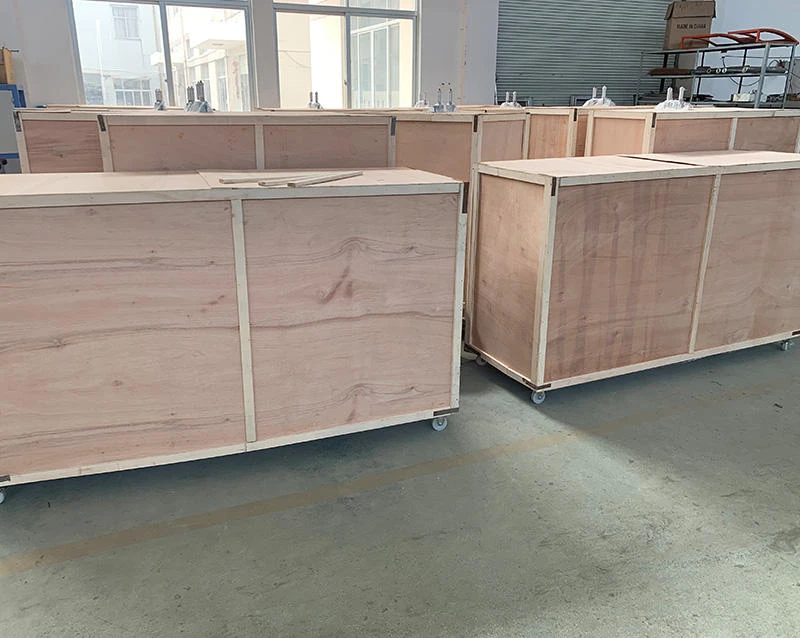

  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package

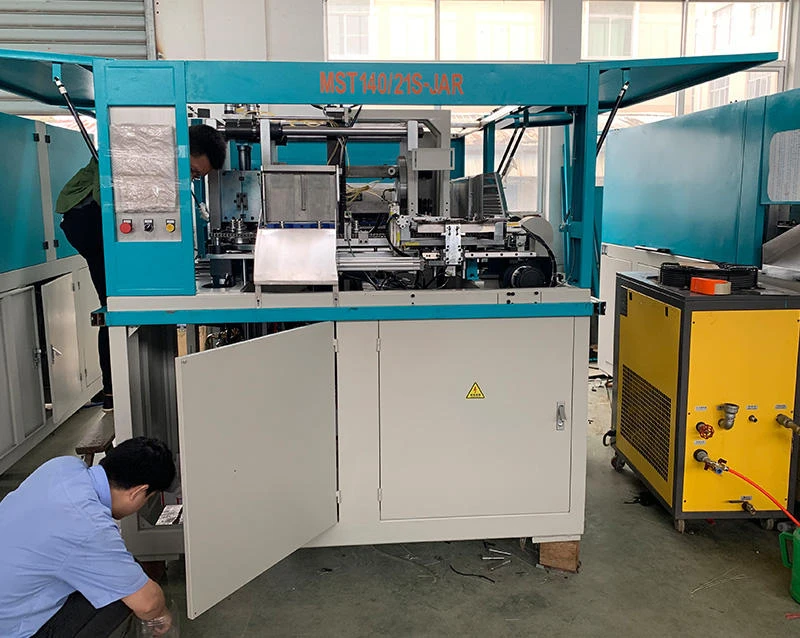

  • Customer receipt


  • Customer receipt


  • Customer receipt


  • Customer receipt


  • Customer receipt

CertificationsMaster Packing Co.,Ltd.

  • Appearance patent

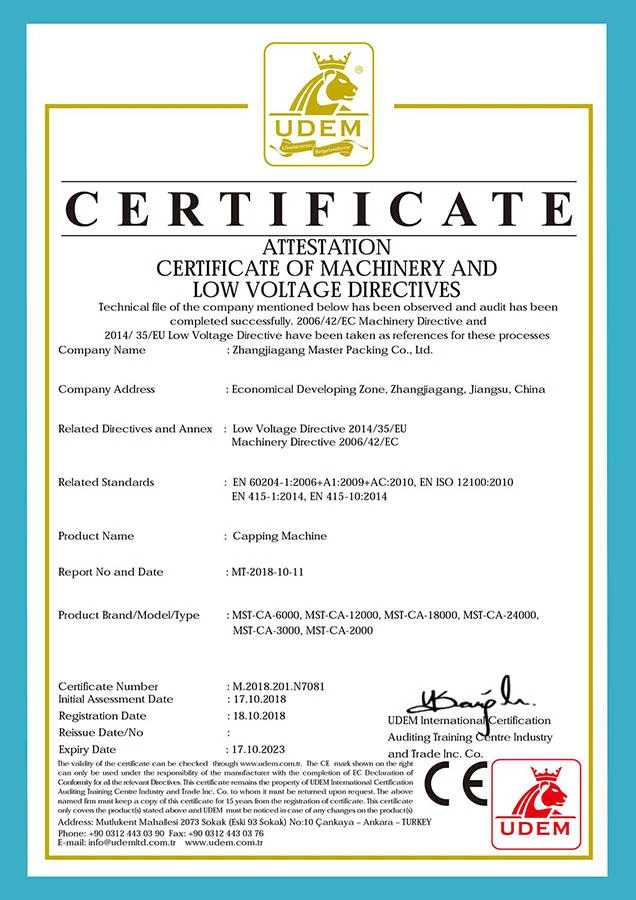

  • CE 2018

  • patent
