Heating and molding run separately, PET Bottle Blowing Machine 2L 6000BPH 100/6

Master Packing Co.,Ltd. Heating and molding  run separately, PET Bottle Blowing Machine 2L 6000BPH 100/6

Master Packing manufacturing design and produce the fully automatic bottle blowing machine more than 20 years, now we can produce 1 —16 cavity,10ml-—30L PET bottle with the output 100—19,200BPH.AII Master blowing machine can connect to the filling line. Master packing supply bottle blowing mold and preform and cap injection mold. Our quick change blow mold can save a lot of time and effort on change mold.

Features of PET Bottle Blowing Machine 2L 6000BPH 100/6

  • High Output: Due ti the adoption of the heating and molding these two parts run separately, blowing of high speed operation
  • thus to improve the output.
  • Low-energy: Due to the adoption of transfer structure, heating the two preforms are close by, makes full use of the heat.
  • Clean:  Blow molding track without rotation chain, without oil lubrication, therefore the machine will keep clean.
  • Simple:  the patent technology chain drive towards technology and two orbit transmission structure.

Heating and molding run separately, PET Bottle Blowing Machine 2L 6000BPH 100/6 DetailsMaster Packing Co.,Ltd.

Master Automatic Blow Molding Machine UNIT MST-100
100/2 100/4 100/6
Molding Number of Cavity Cavities 2 4 6
Clamping Stroke mm 120 120 120
Cavity Spacing mm 114.3 114.3 114.3
Carriage unit pcs 56 83 122
Container Max.Bottle Volume ltr 2 2 2
Max. Neck Diameter mm 42 38 38
Max. Bottle Diameter mm 100 100 100
Max. Bottle Height mm 350 350 350
THEORETICAL OUTPUT BPH 2000 4000 6000
ELECTRICAL
SYSTEM
Max.heating power kw 27 54 54
AIR SYSTEM Operating pressure kg/cm² 8 8 8
Blowing Pressure kg/cm² 30 30 30
Max.capacity of air flow m³/Min 3.2 4.3 6.4
MACHINE  Machine size Meter 2.8X1.8X2 4.4X1.8X2 6.5x2x2
Machine weight KGS 1800 4000 5500
1.The actual output depends on the preform quality and bottle shape.
2.Specifications are subject to change without notice.
3.Output depends upon bottle shape and preform quality.

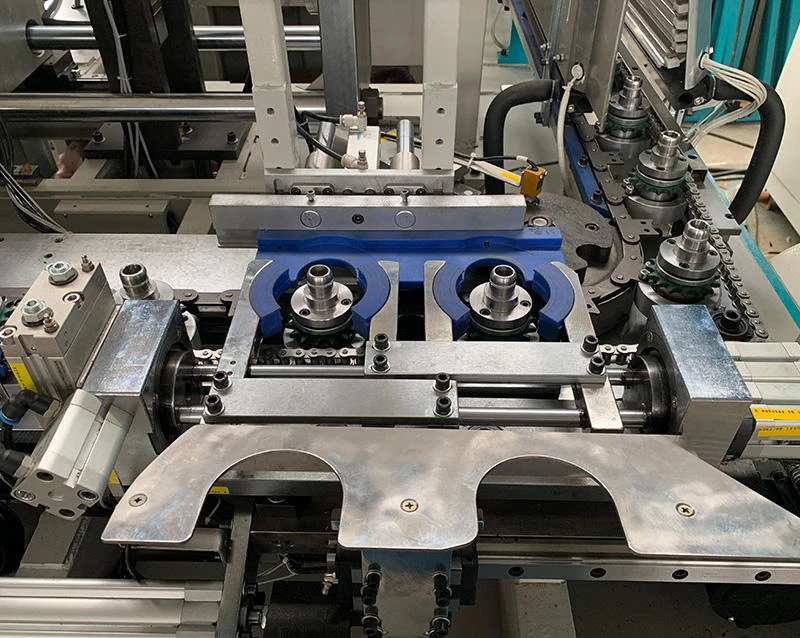

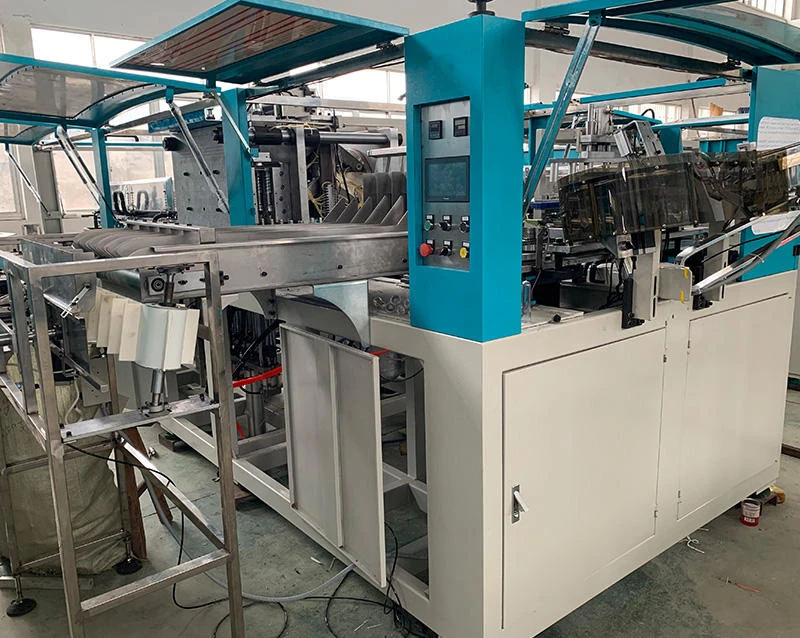

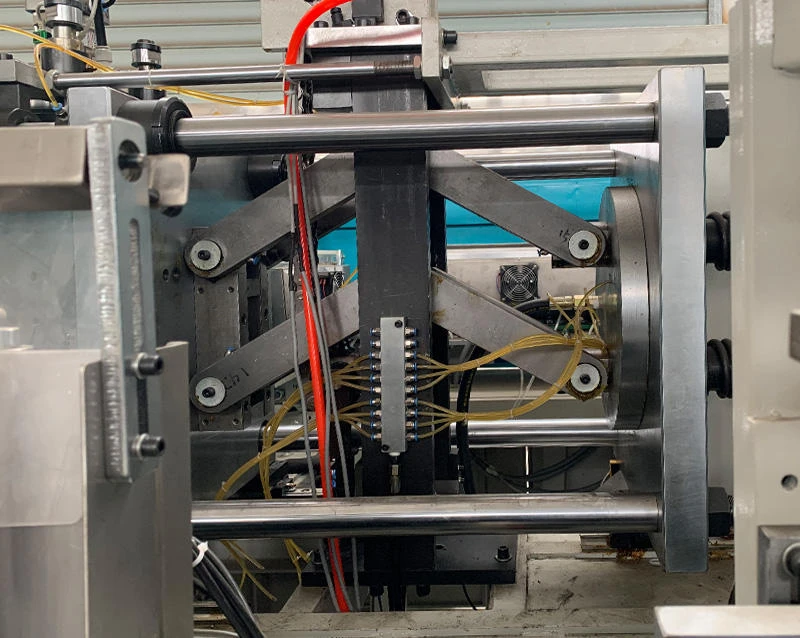

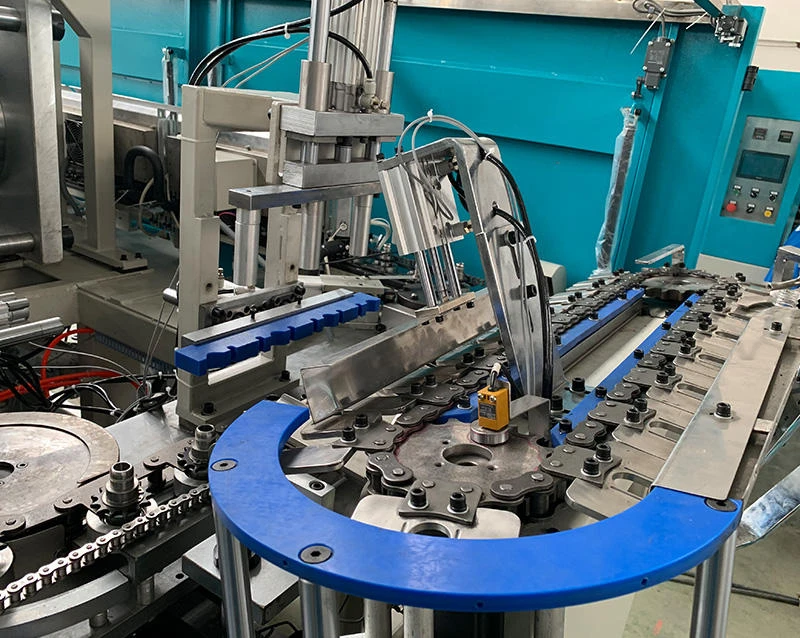

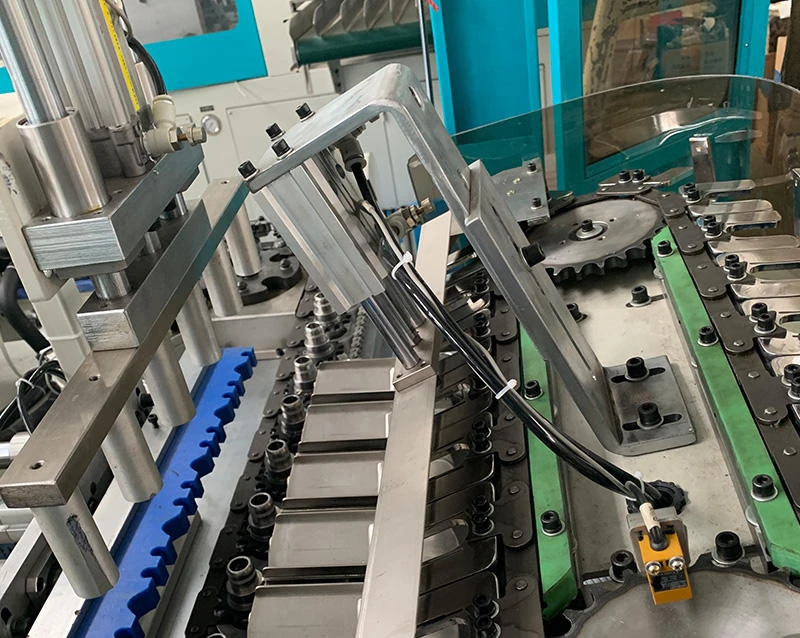

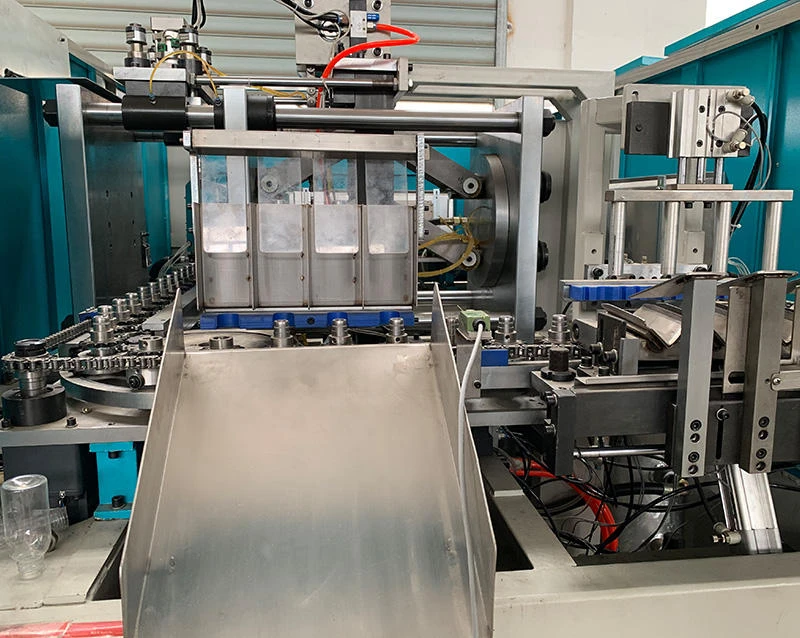

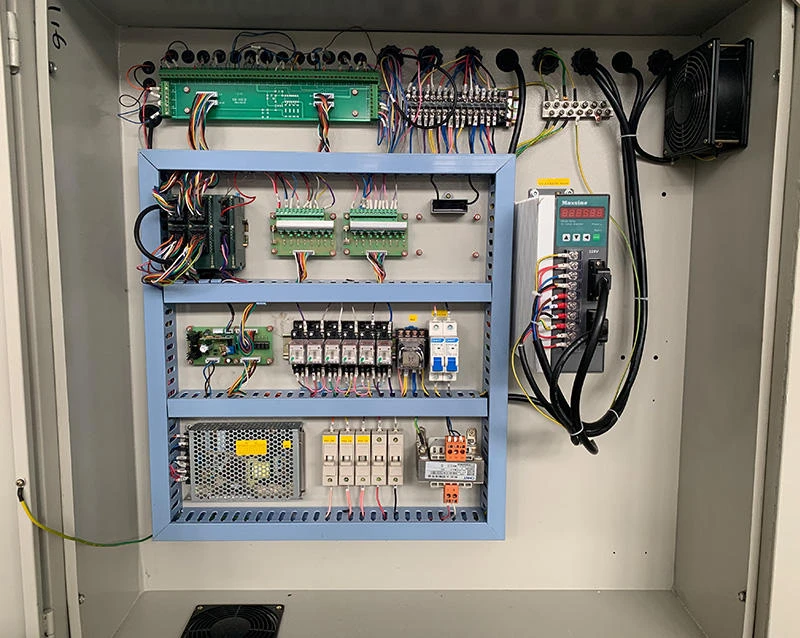

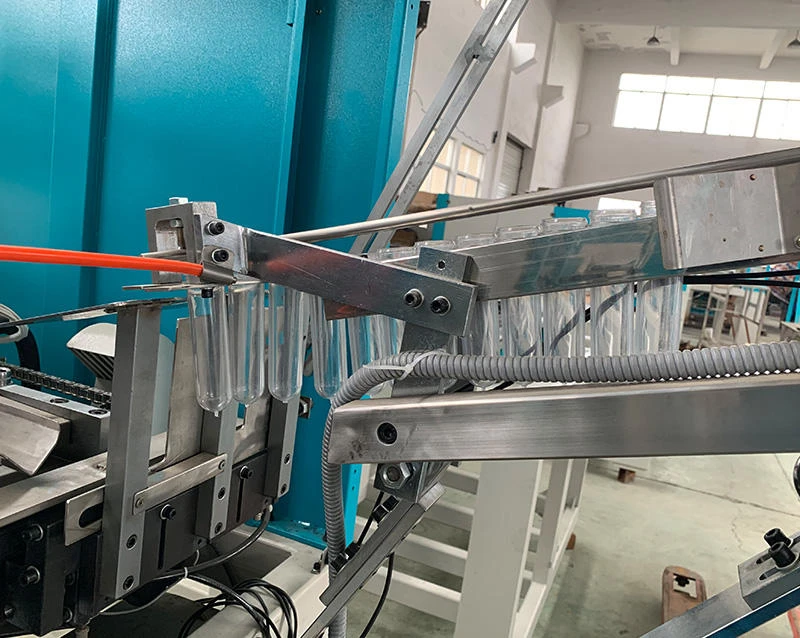

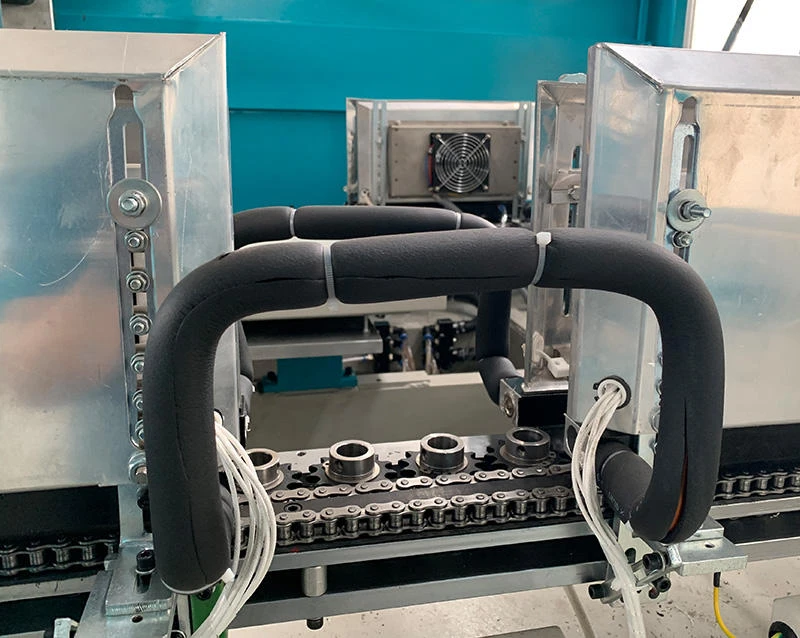

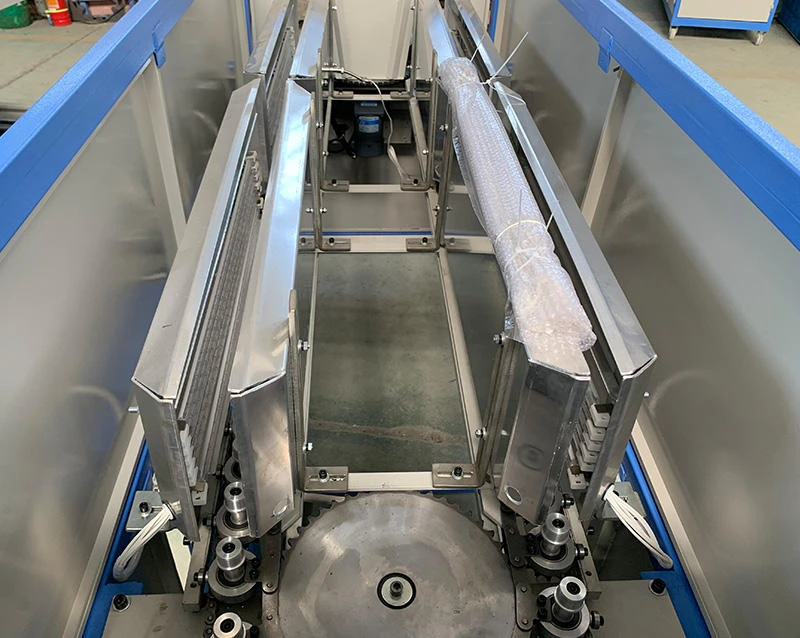

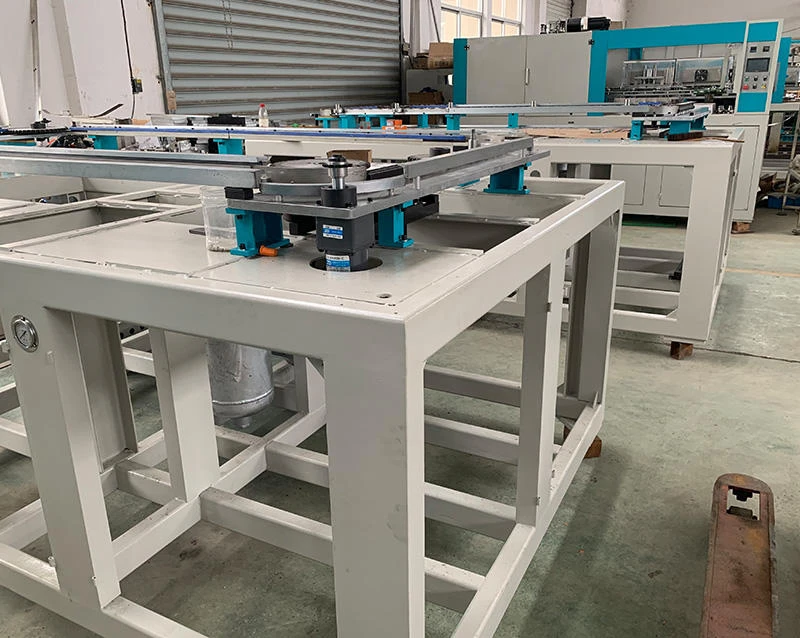

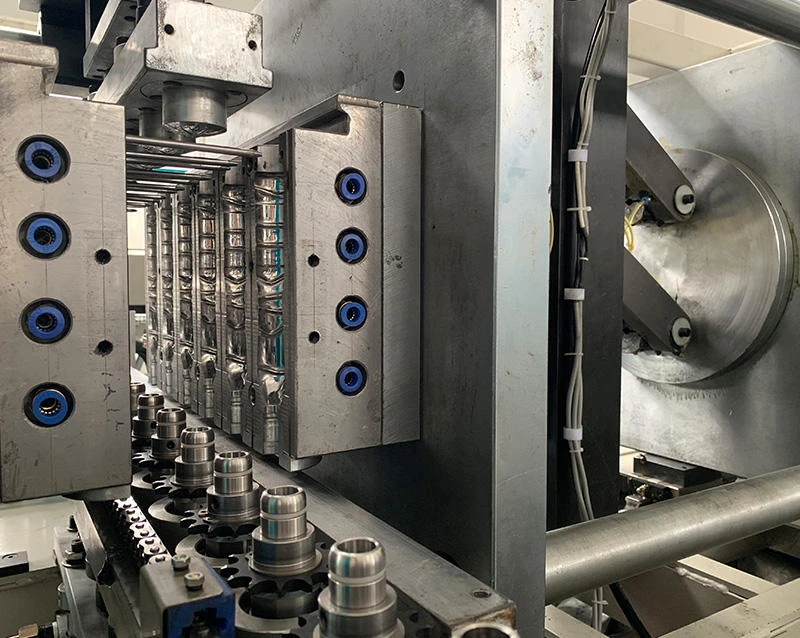

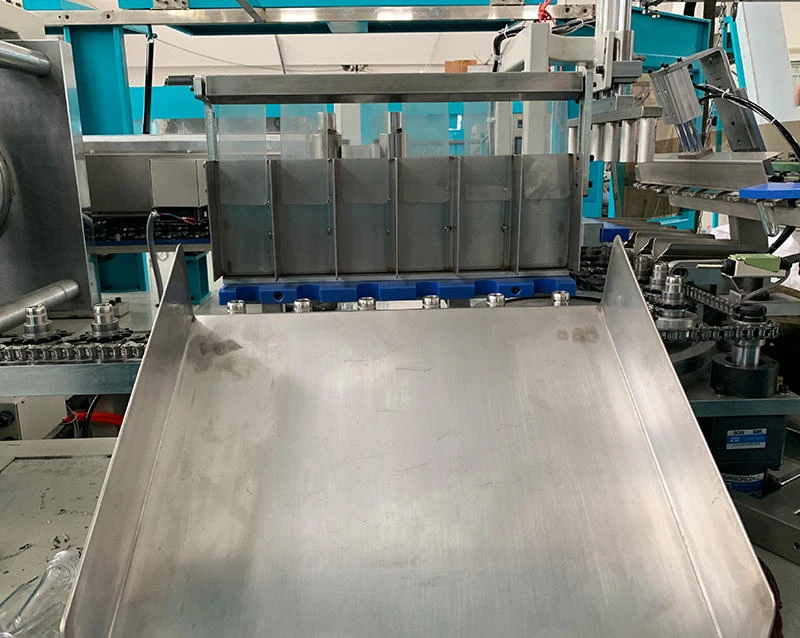

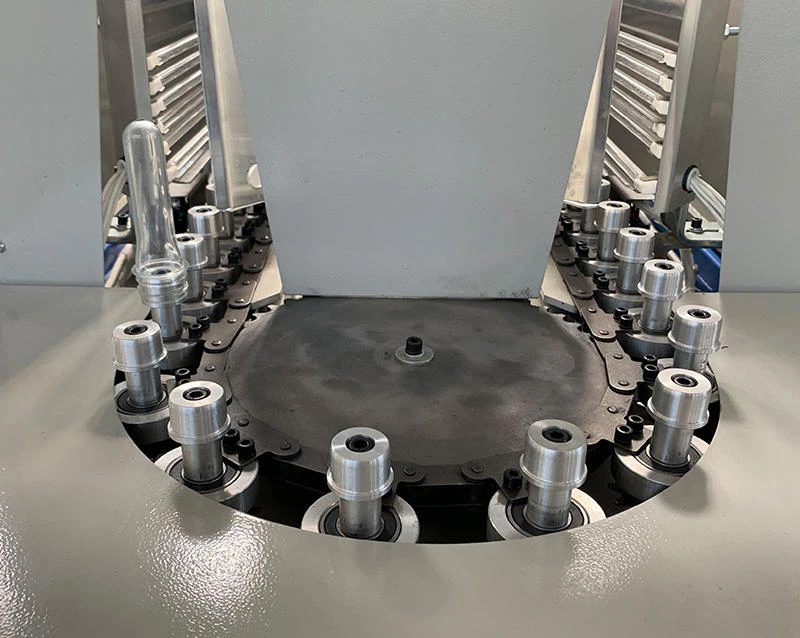

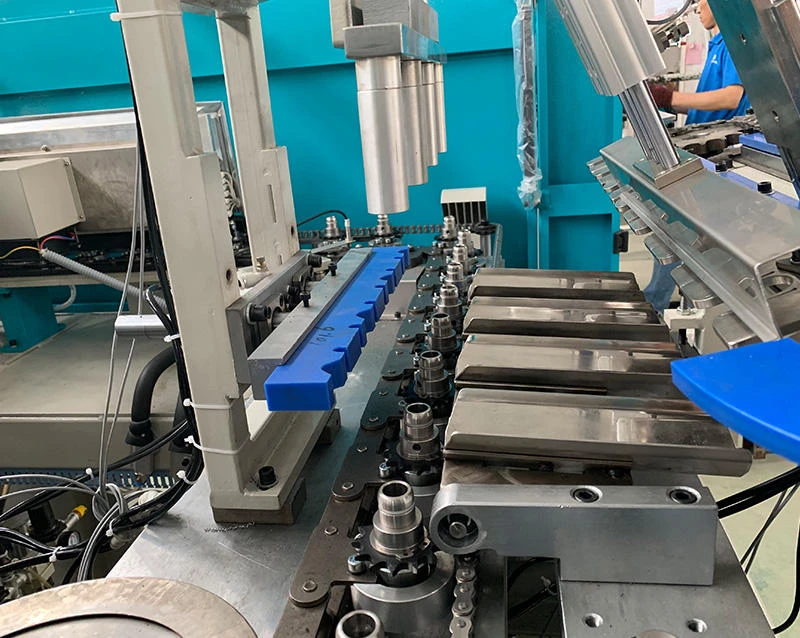

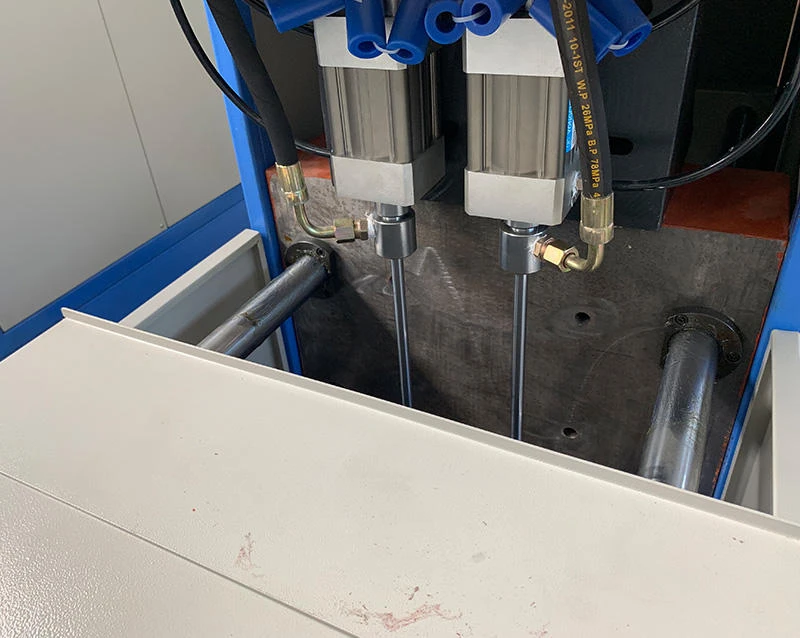

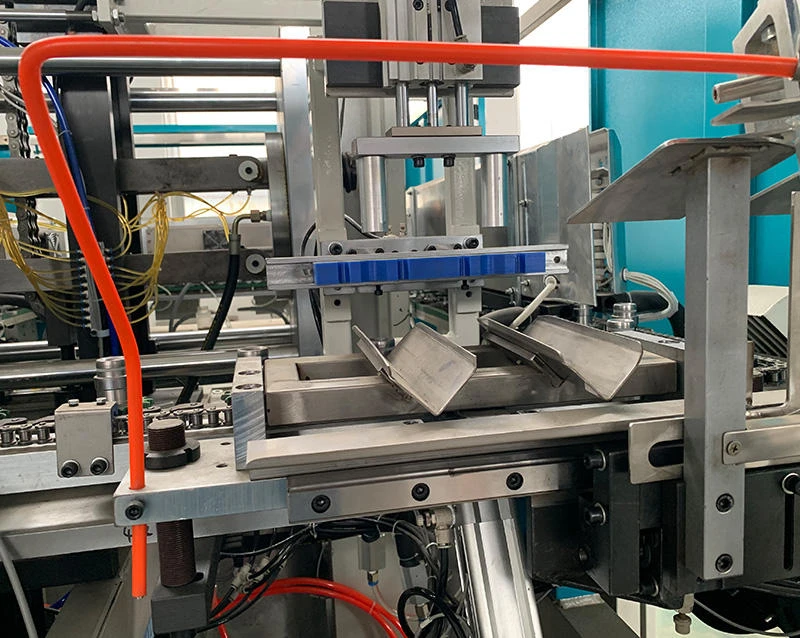

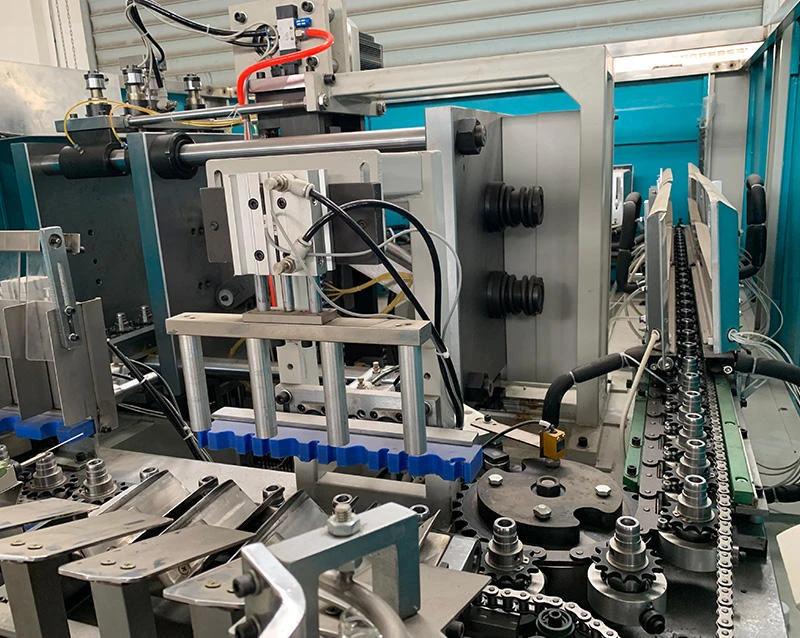

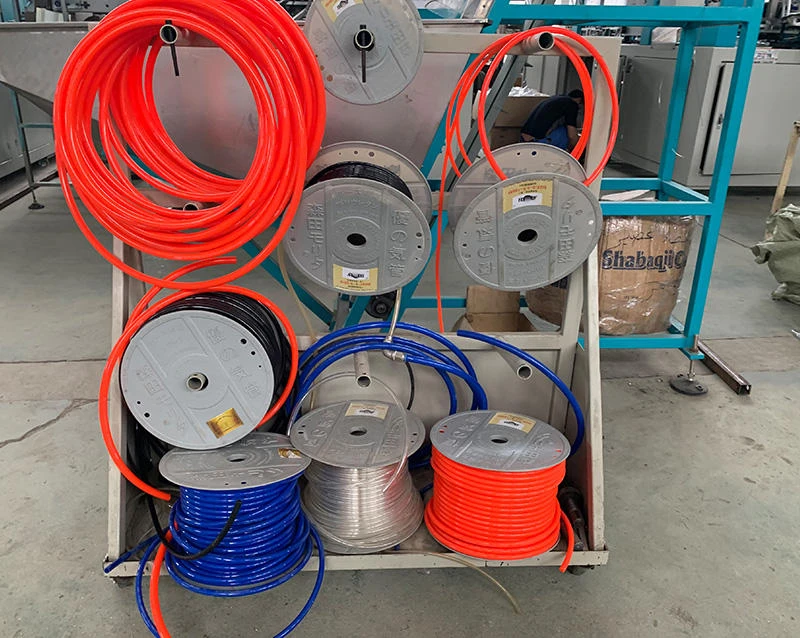

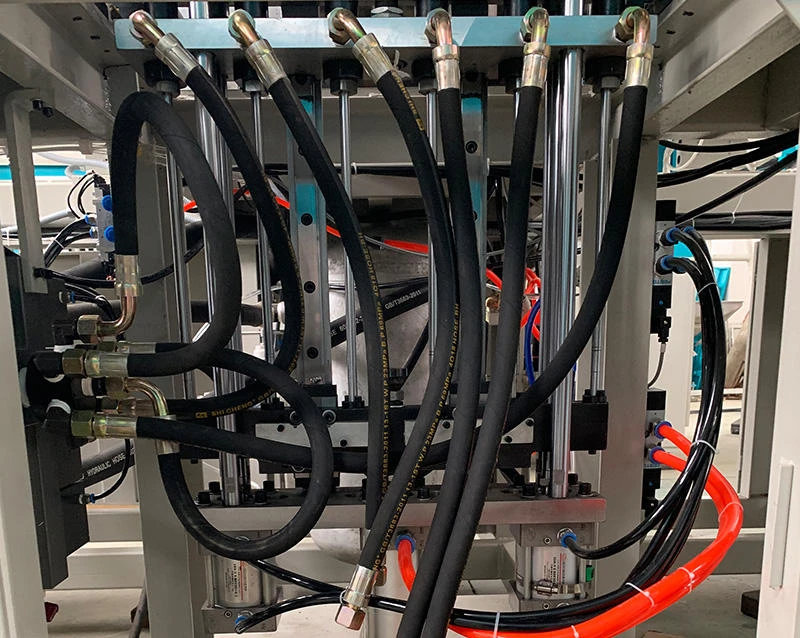

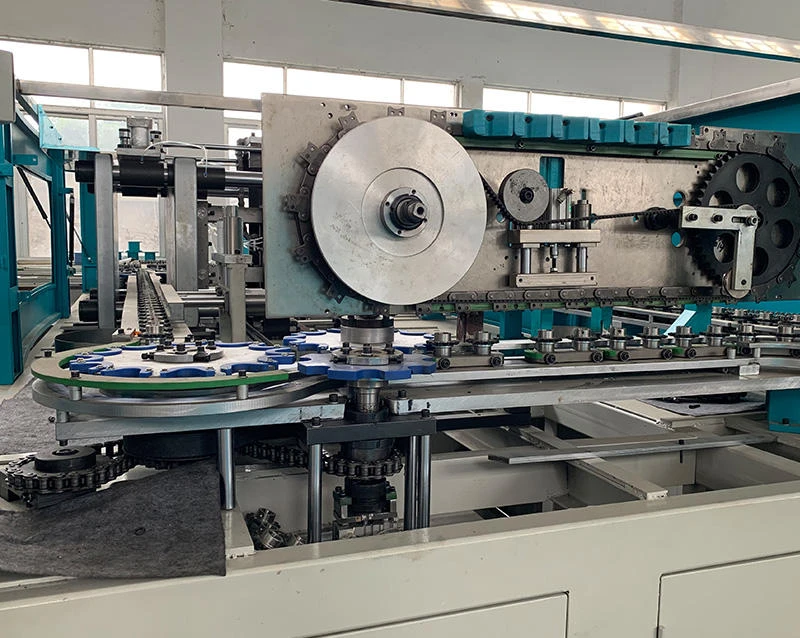

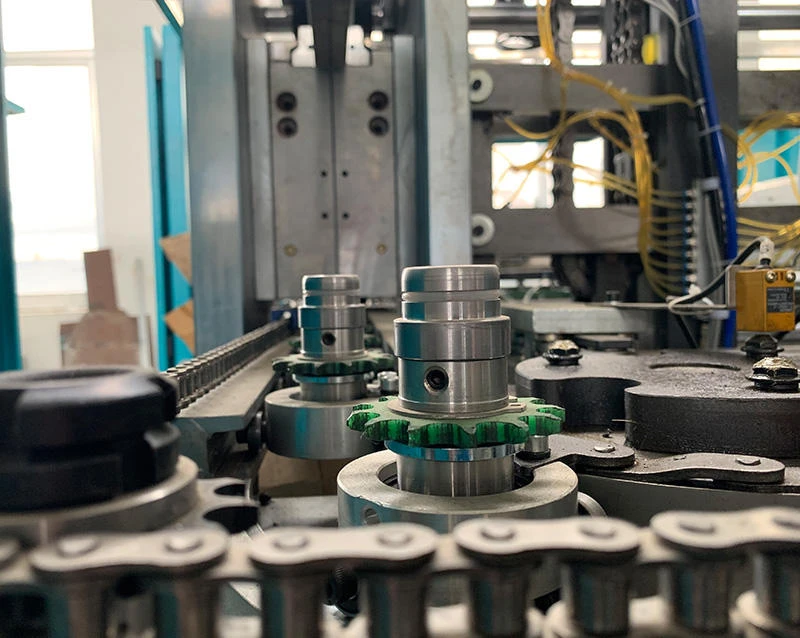

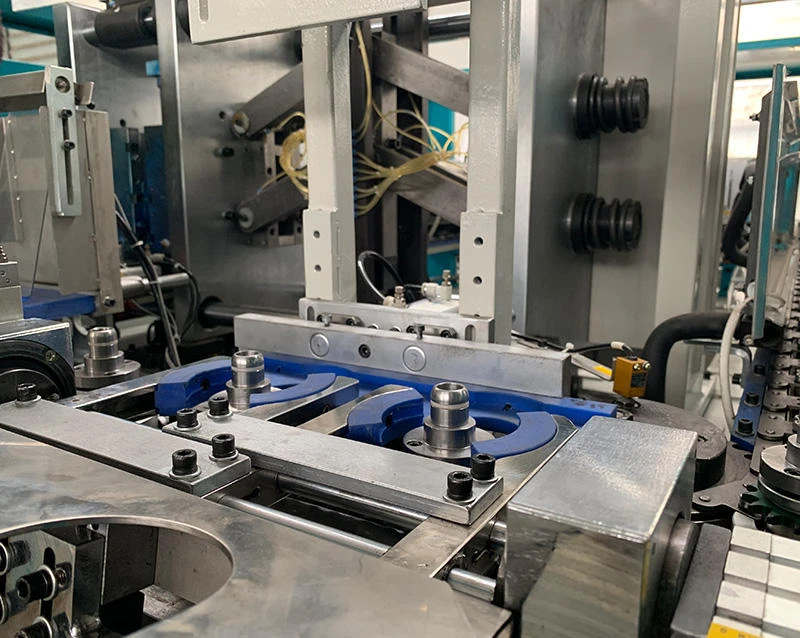

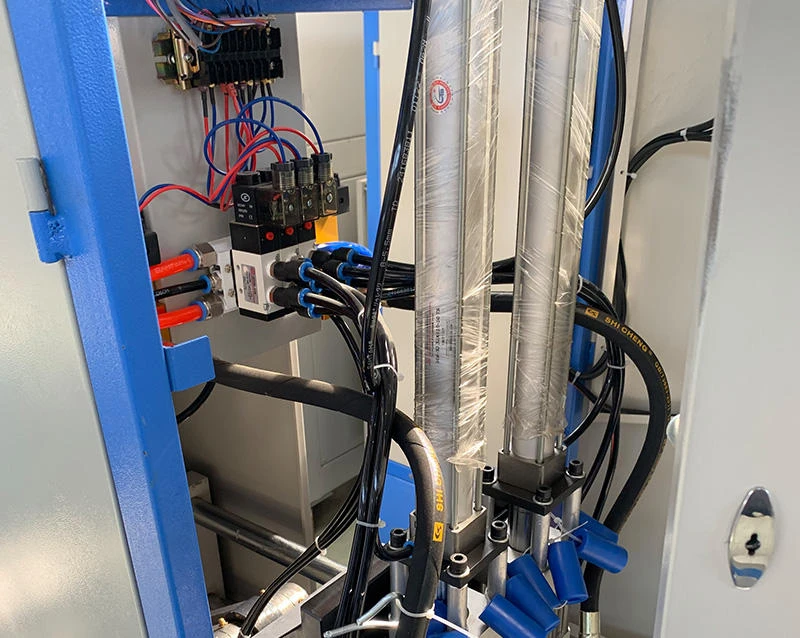

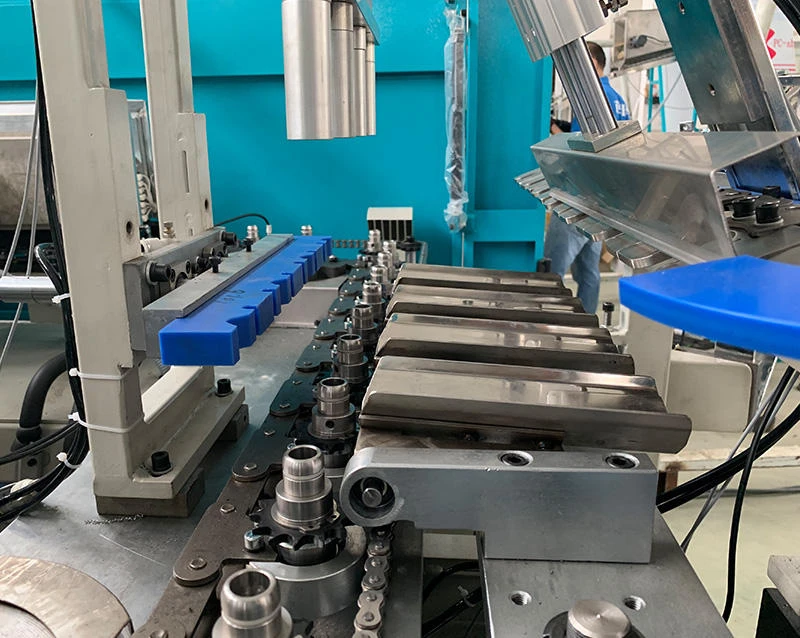

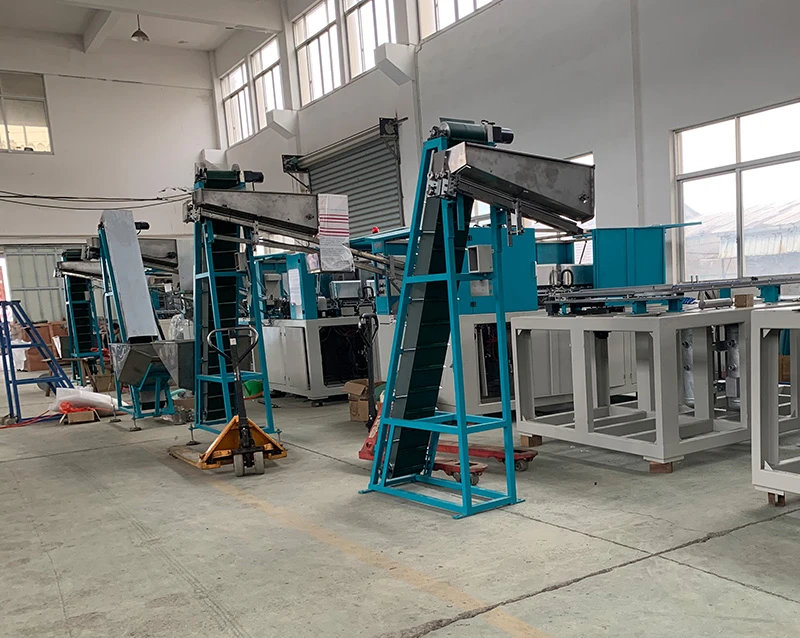

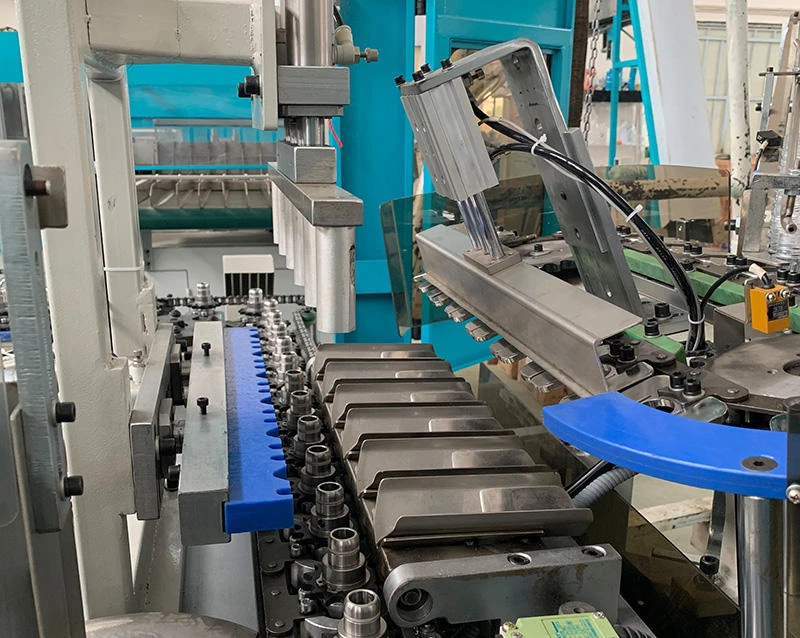

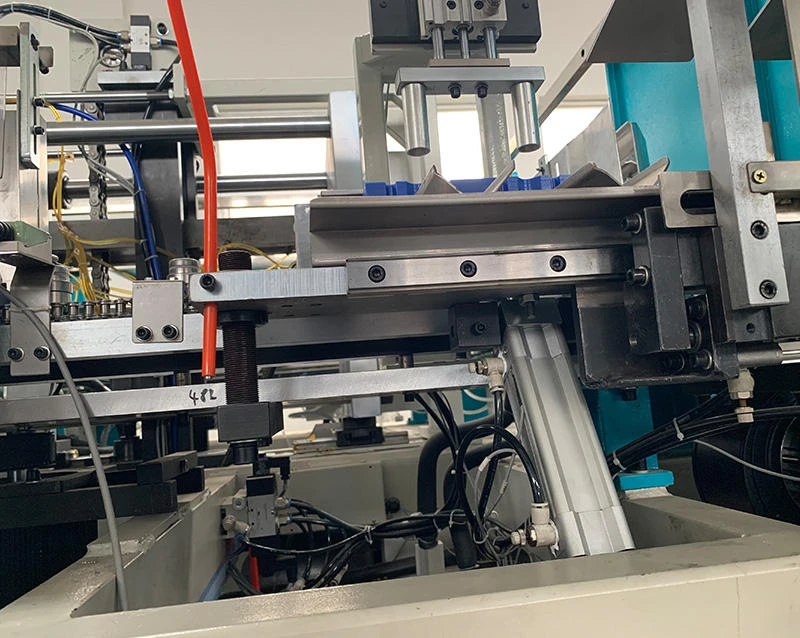

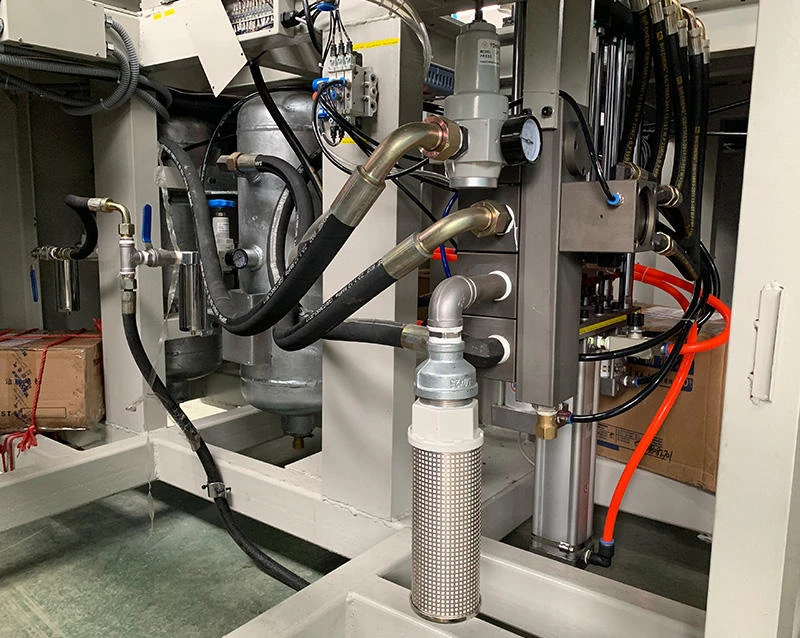

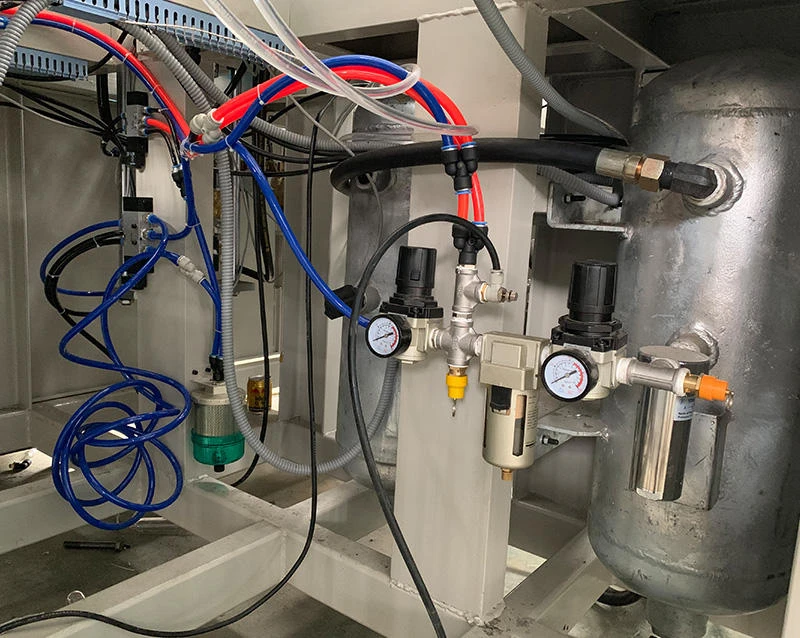

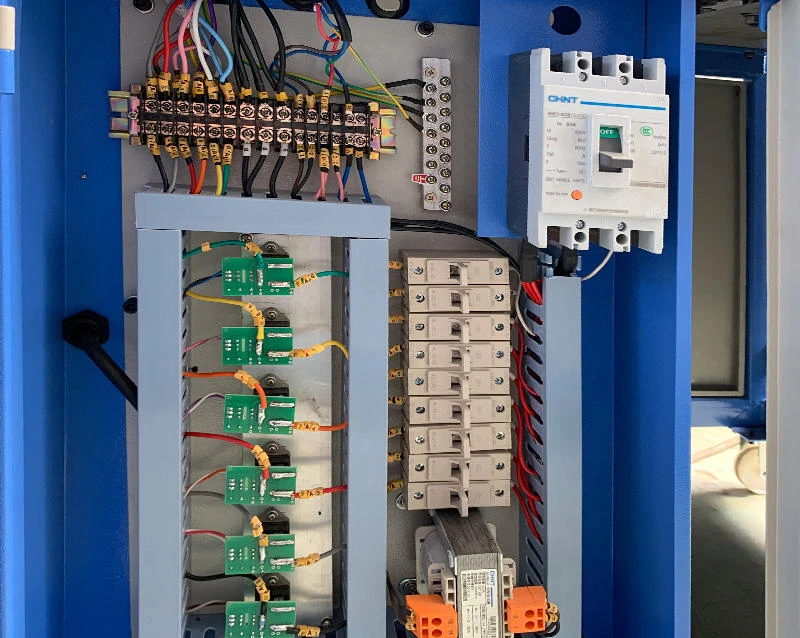

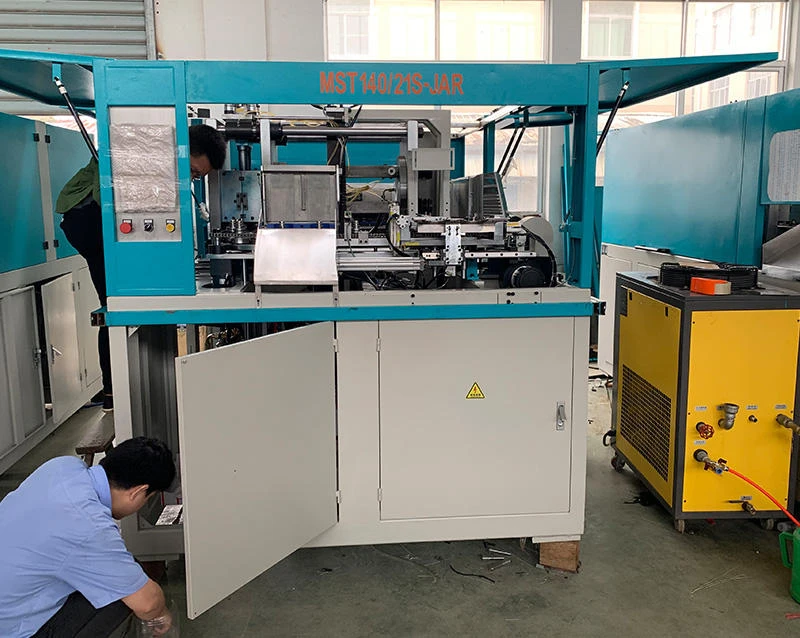

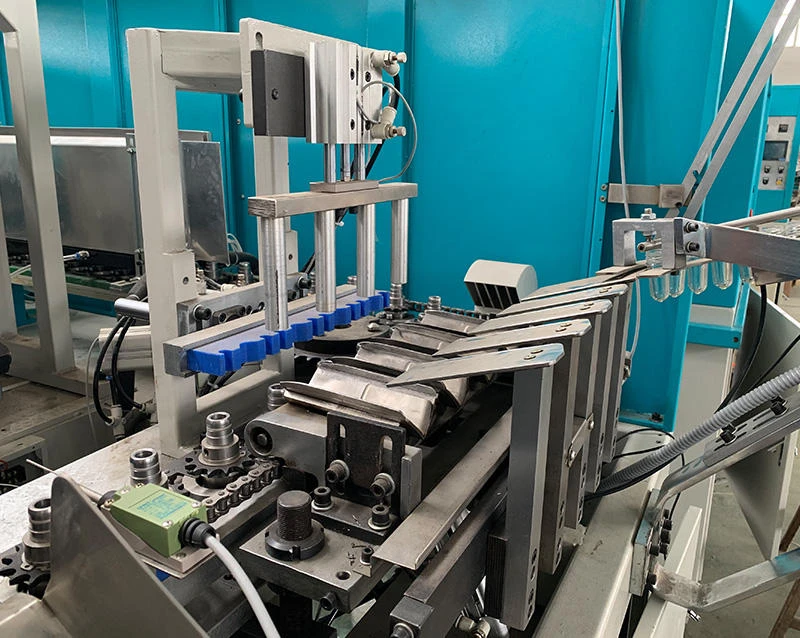

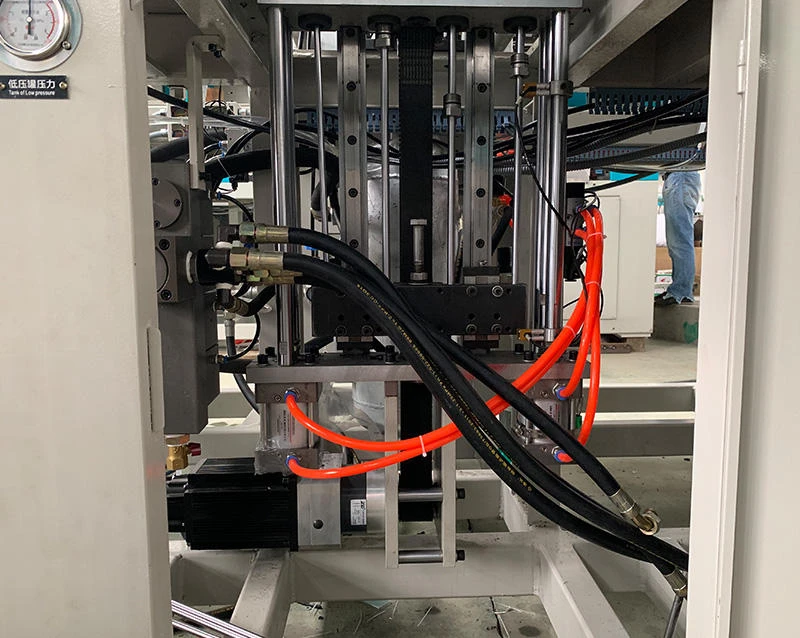

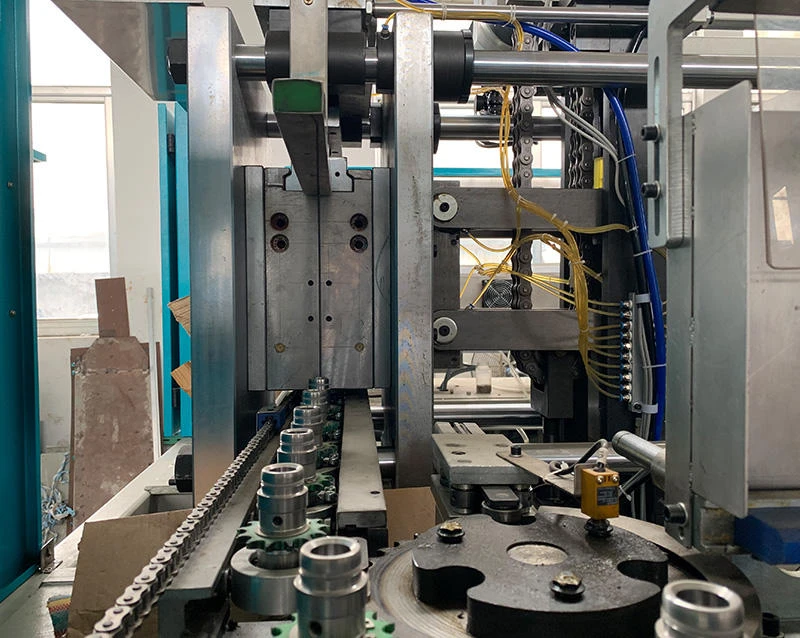

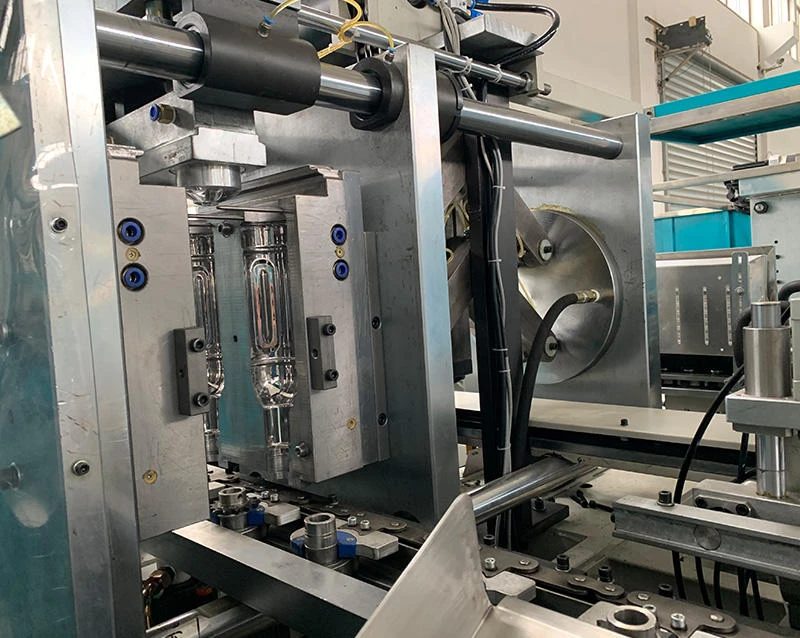

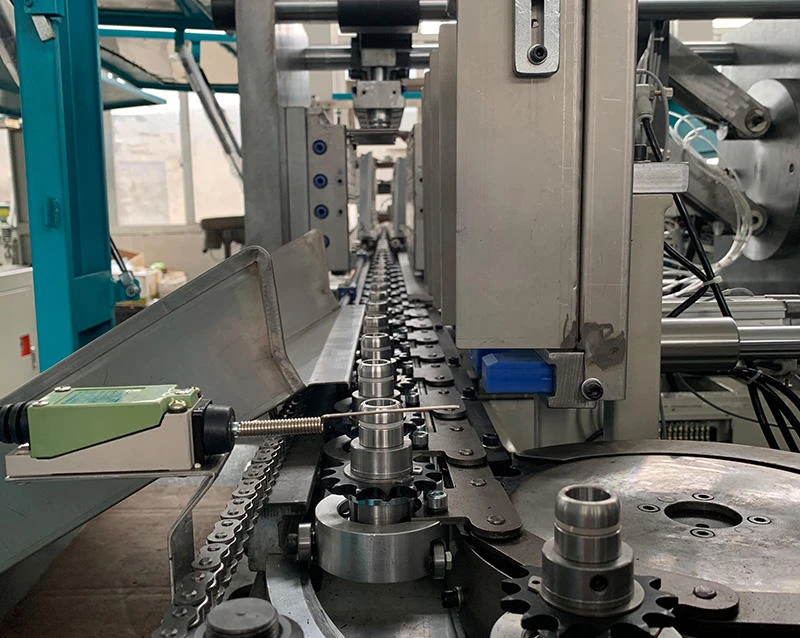

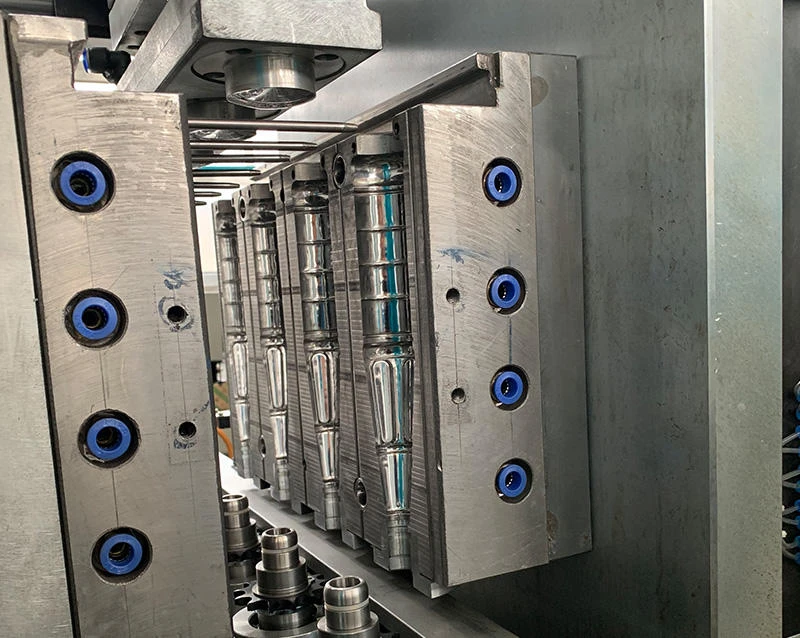

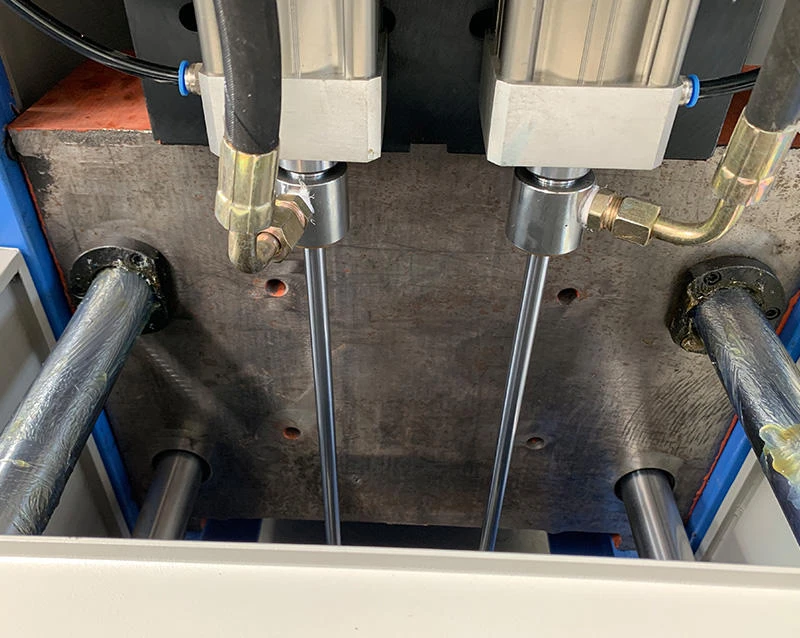

Detail ShowMaster Packing Co.,Ltd.

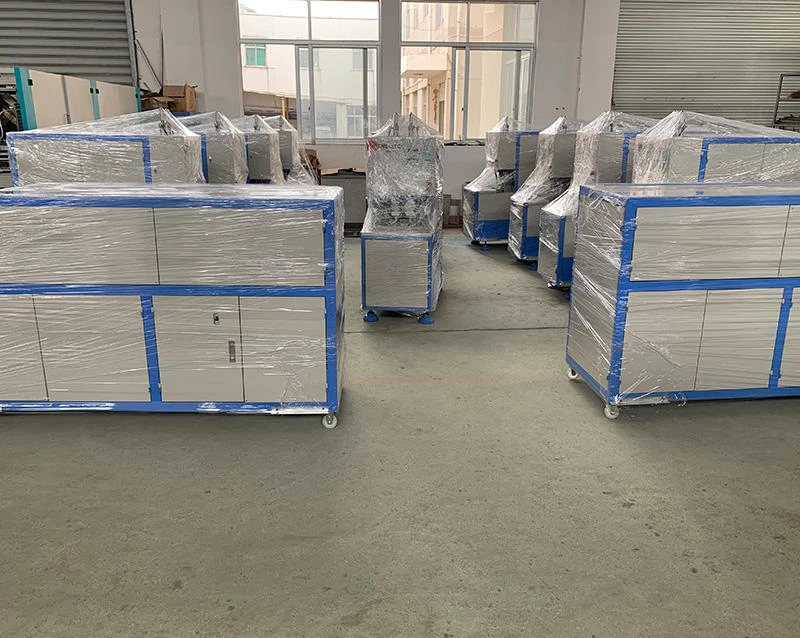

Shipping PackageMaster Packing Co.,Ltd.

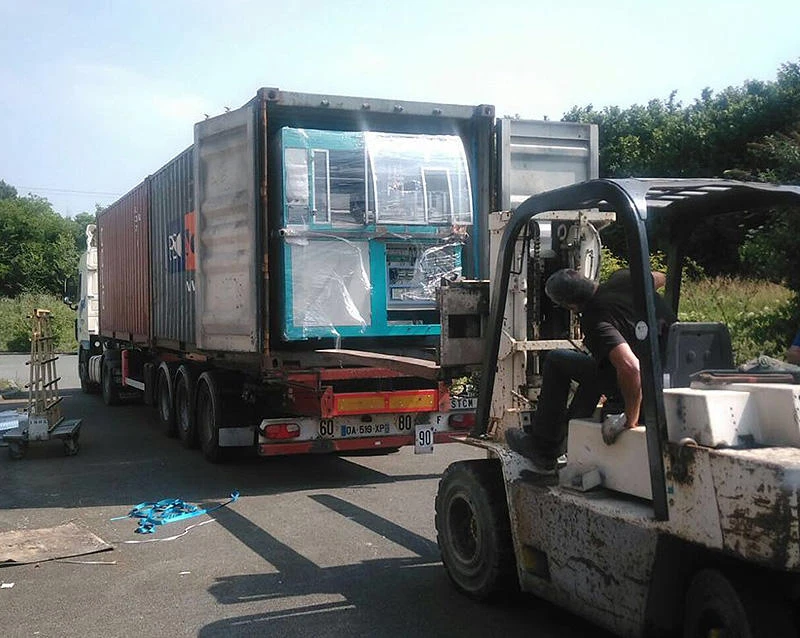

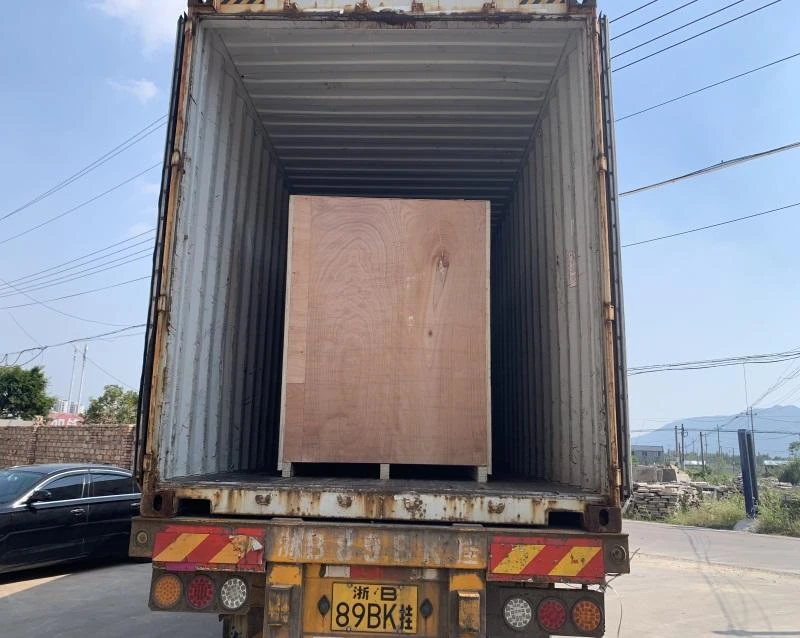

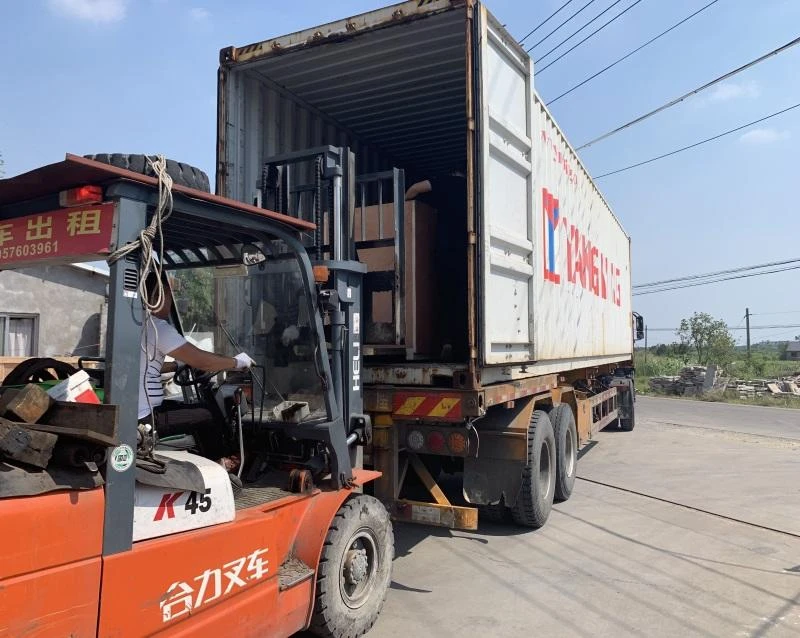

  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Shipping package


  • Customer receipt


  • Customer receipt


  • Customer receipt


  • Customer receipt


  • Customer receipt

CertificationsMaster Packing Co.,Ltd.

  • Appearance patent

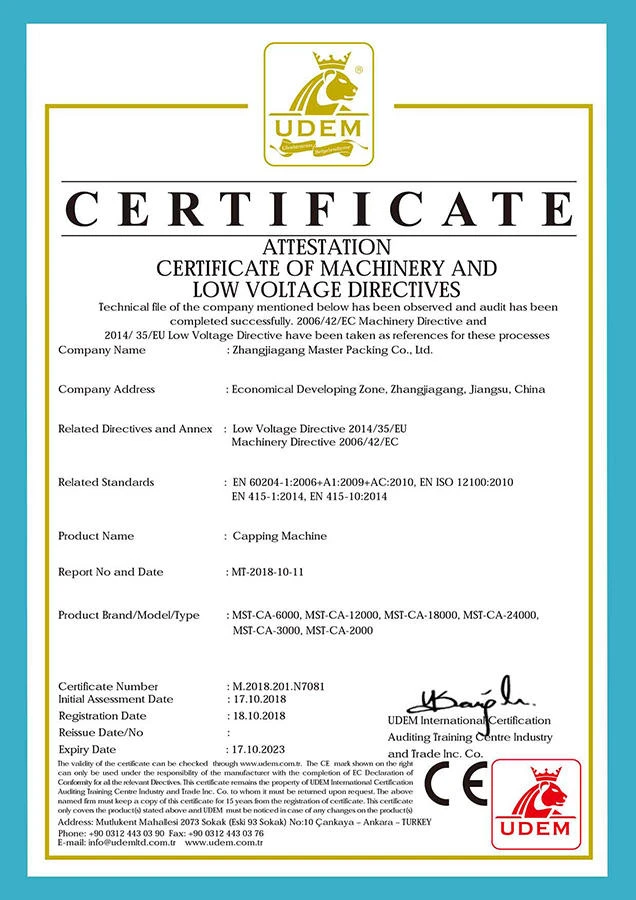

  • CE 2018
