Automatic Glass bottle filling machine

Master Packing Co.,Ltd. Automatic Glass bottle filling machine

Automatic Glass bottle filling machine DetailsMaster Packing Co.,Ltd.

In 2005, Master start producing water filling machine. Now Master produces Mineral/spring water, purified water, fruit juice, beverage, carbonated soft drinking, oil, and daily chemical filling machine, and we also supply with water treatment, beverage processing, and auxiliary machine, Filling speed is from 2,000BPH---48,000BPH, and also do A--Z and turnkey project.



Main Technical Parameters



Parameters/Type BCGF 18-18-6 BCGF 24-24-8 BCGF 32-32-10
Washing Heads 18 24 32
Filling Heads 18 24 32
Capping Heads 6 8 10
Output(500ml) 3000-4000BPH 5000-6000BPH 8000-10000BPH
Measurement 2730x2060x2700 2760X2060X2500 3550X2650X2500
Power(KW) 2.2 3.2 4

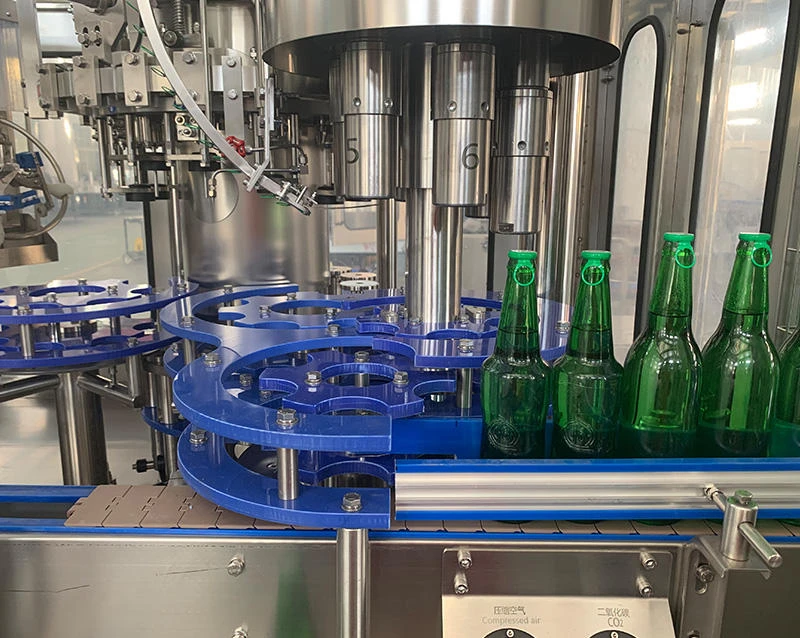

Hot filling machines series as BCGF 3 in 1 mono-block machines integrate the function of rising, filling and capping together for glass bottle with crown cap and aluminum screw cap. And its glass bottle contact parts are Polymer nylon material which protects the glass bottles.

Depending on the different place and seasons, we will suggest customers to have 1 step warm water cleaning glass bottles to be avoid broken in winter specially. The capacity is from 2000BPH-24000BPH

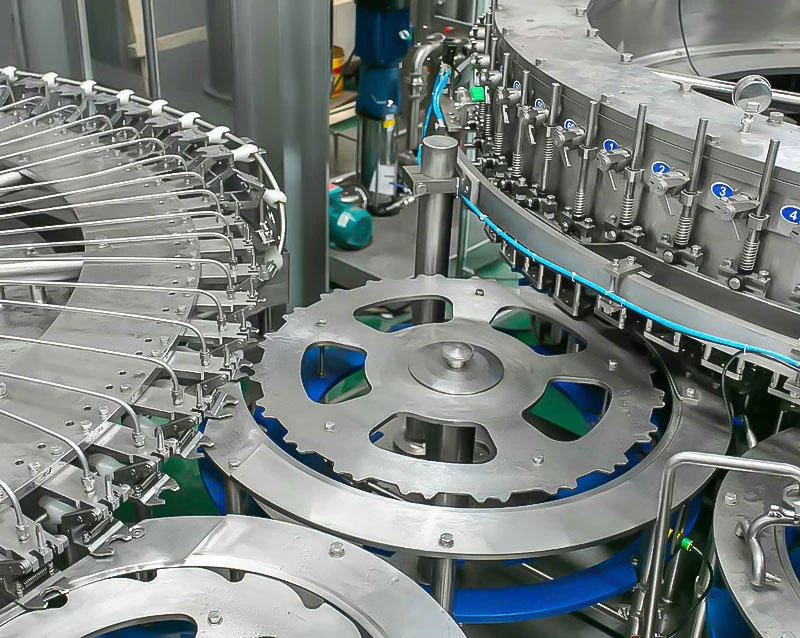

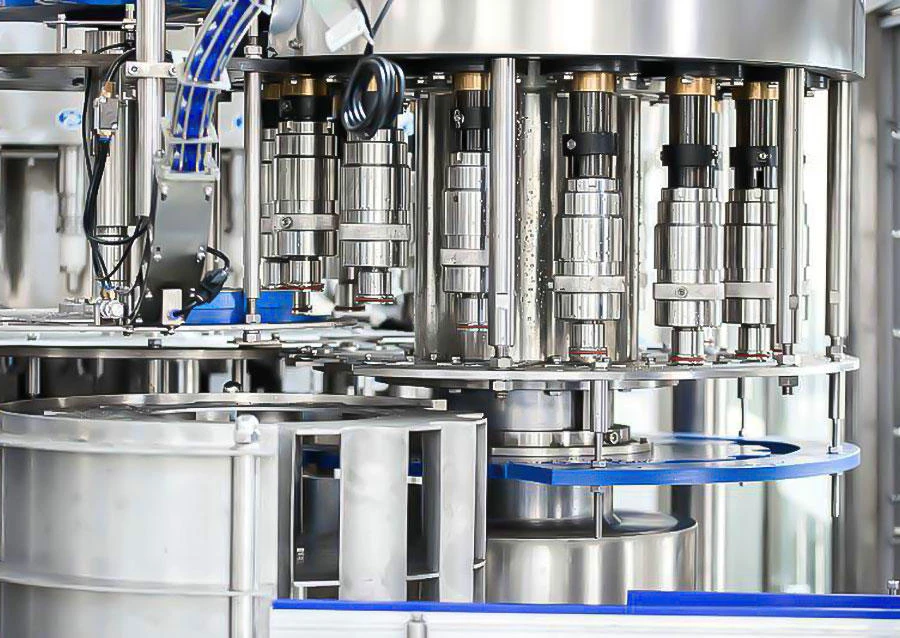

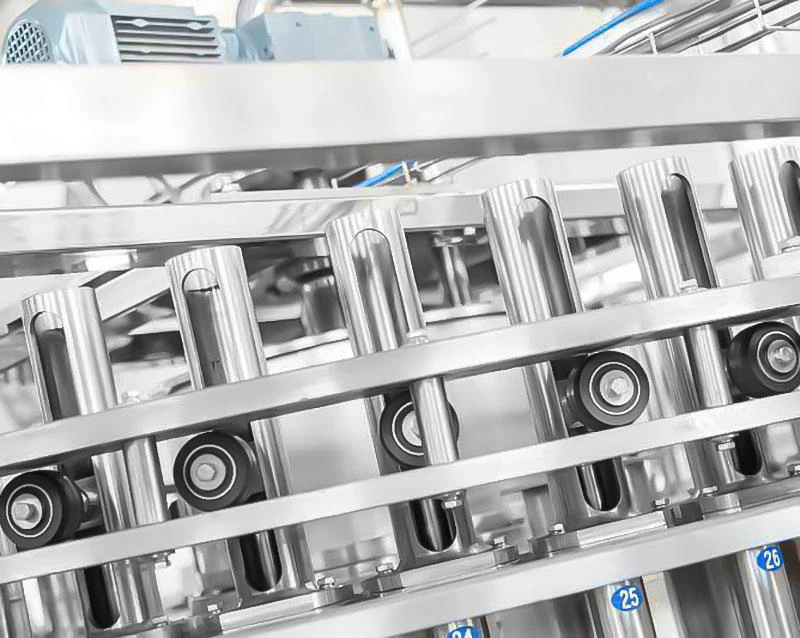

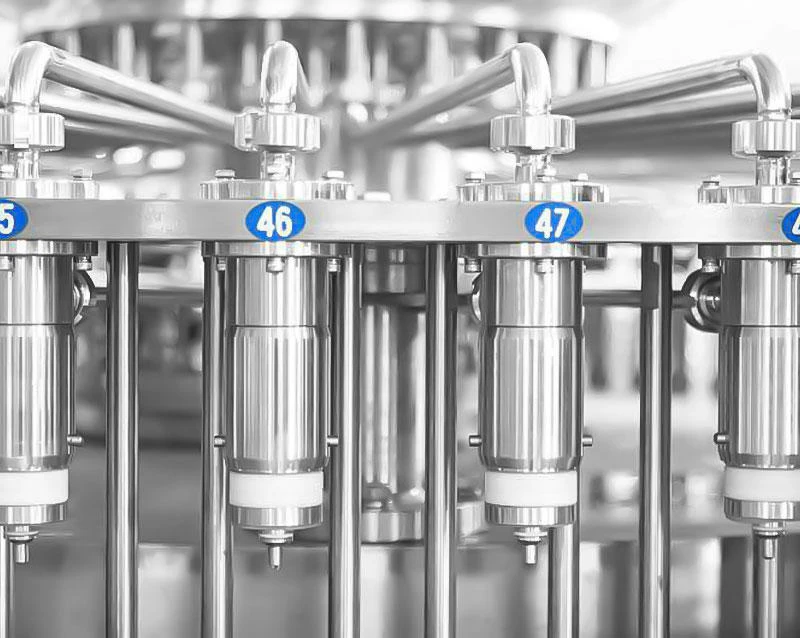

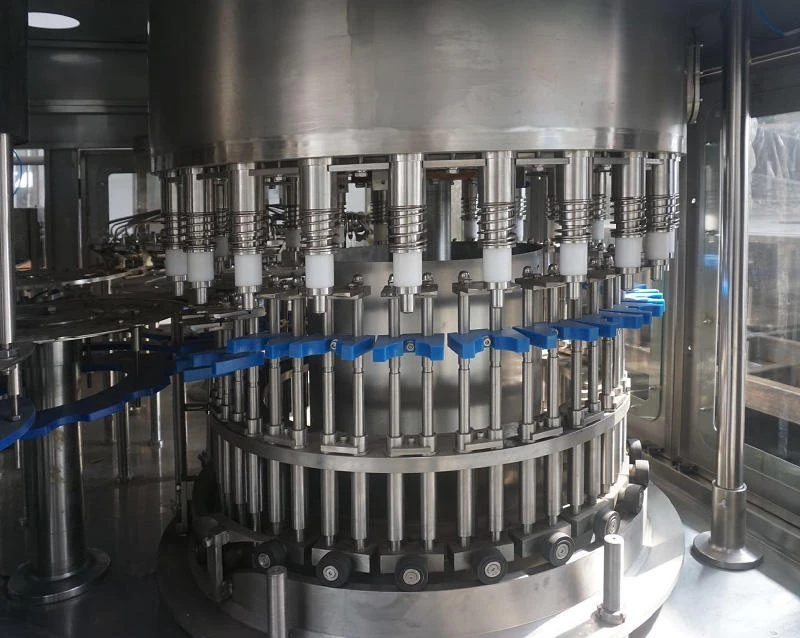

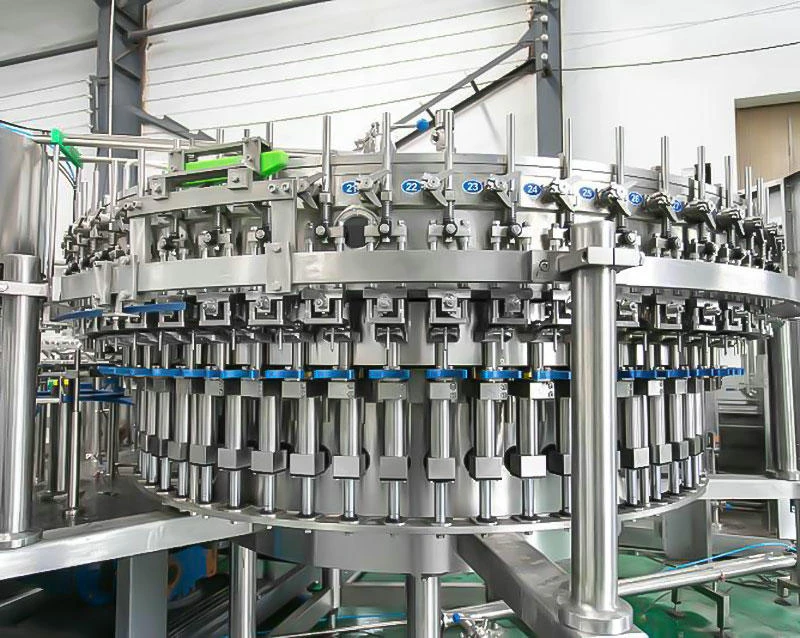

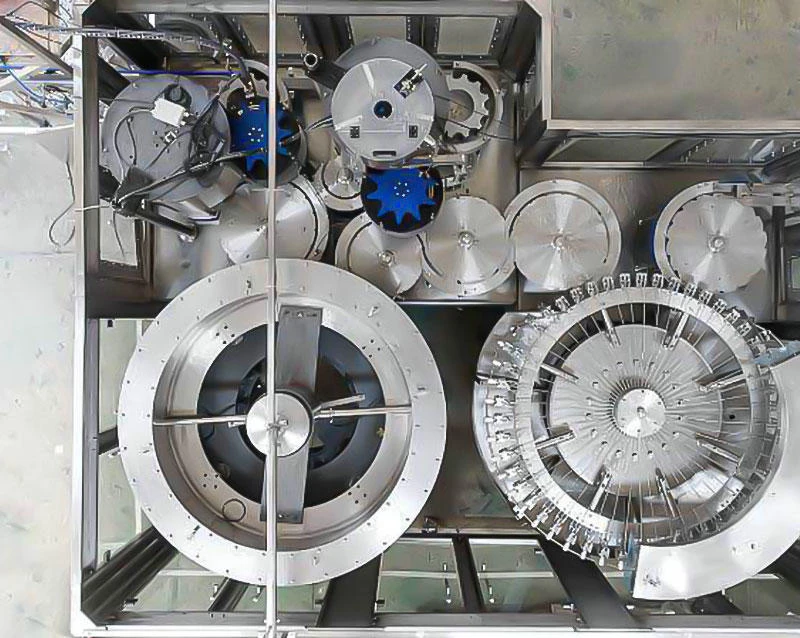

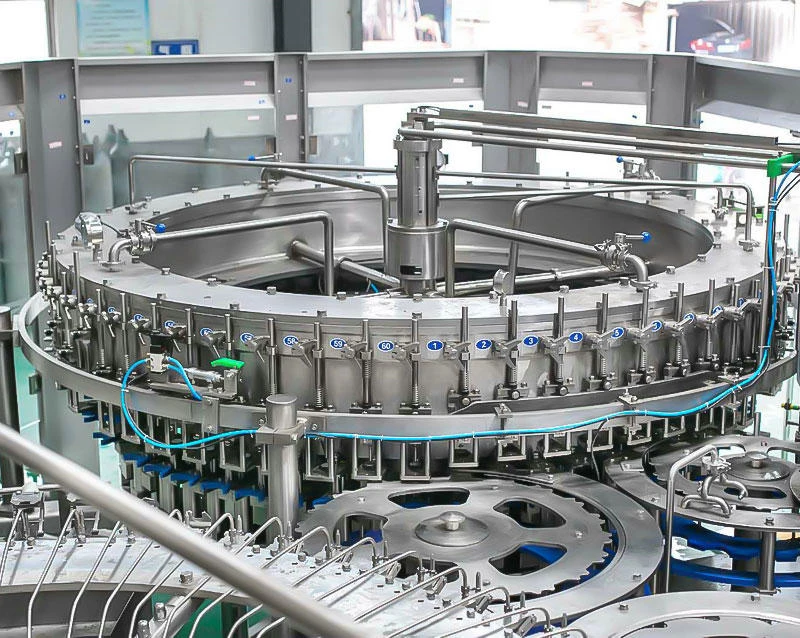

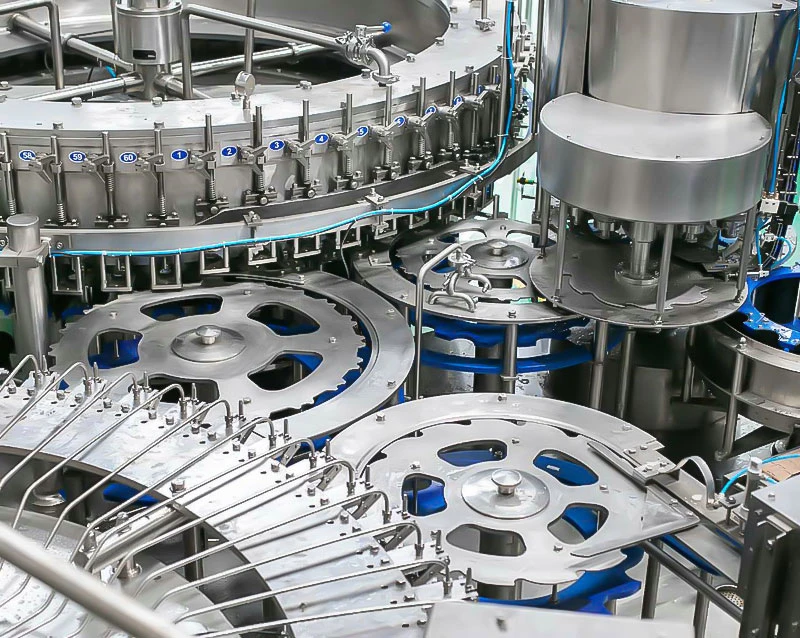

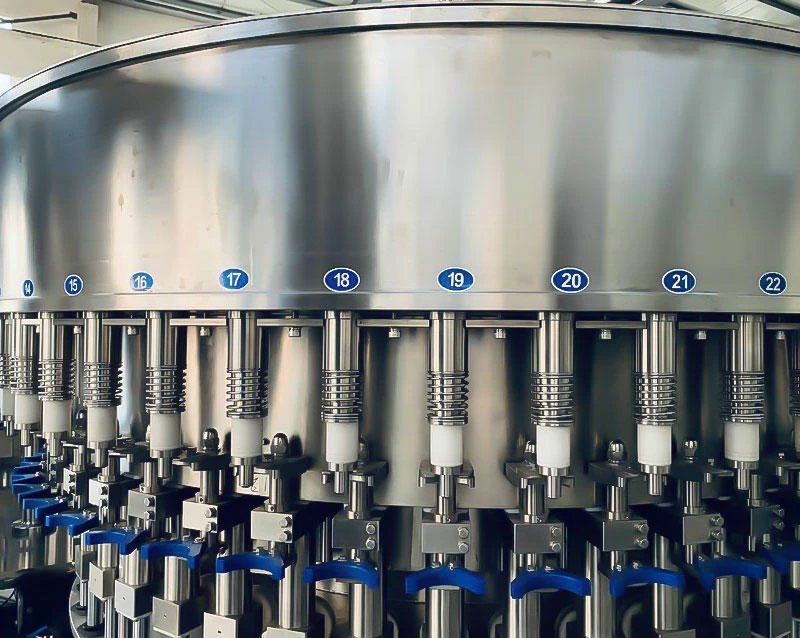

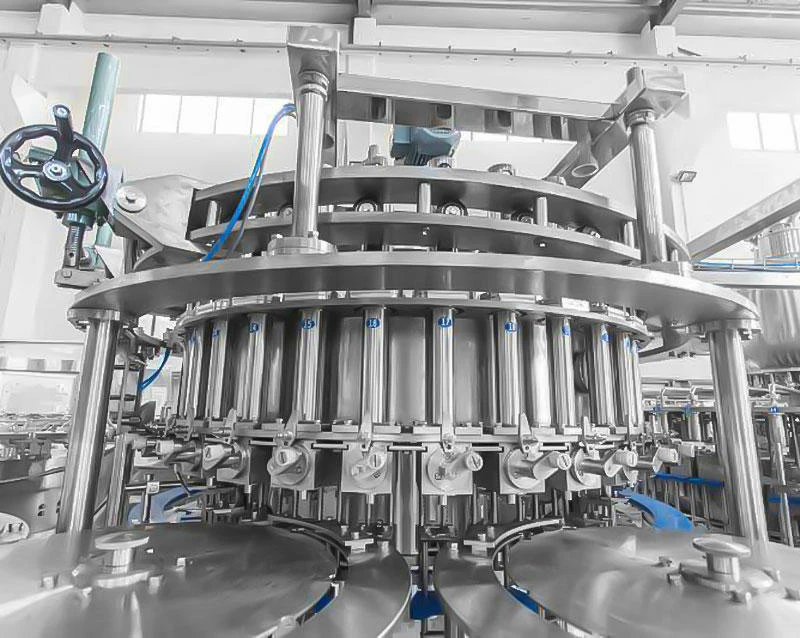

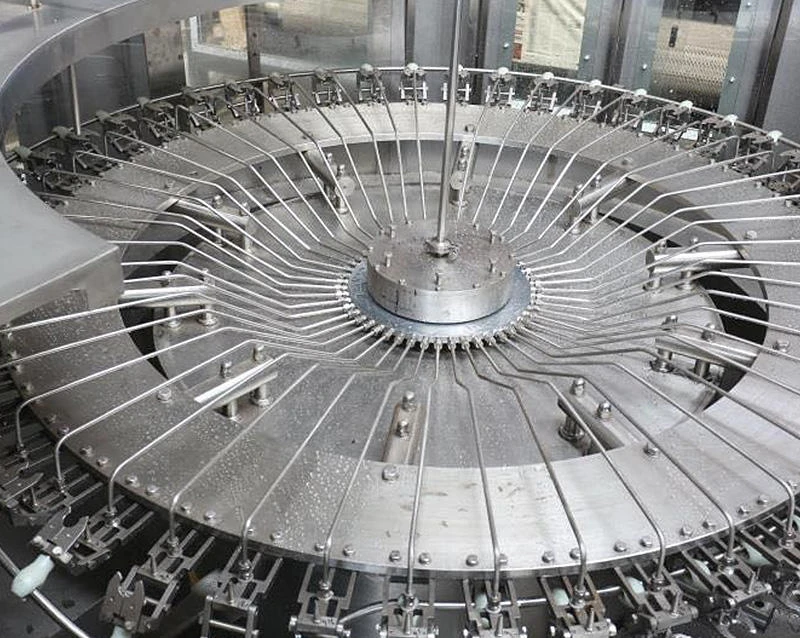

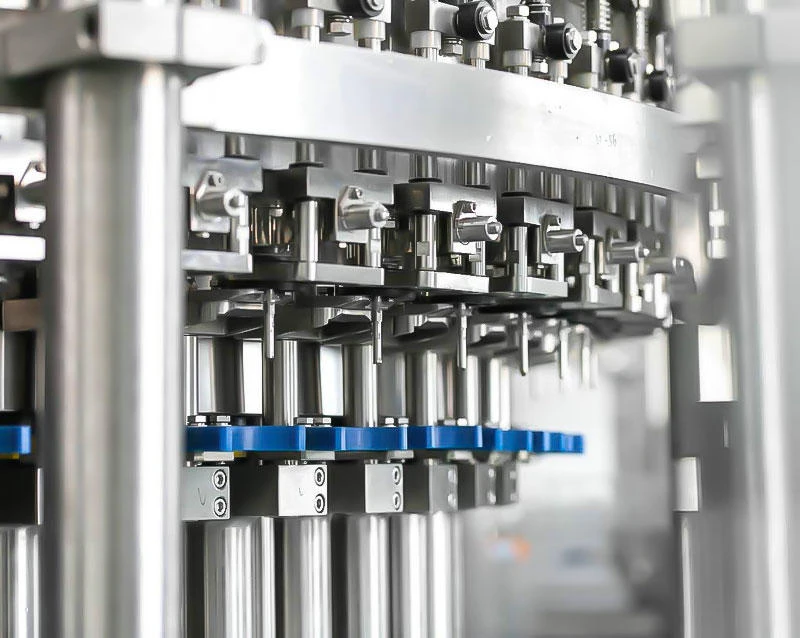

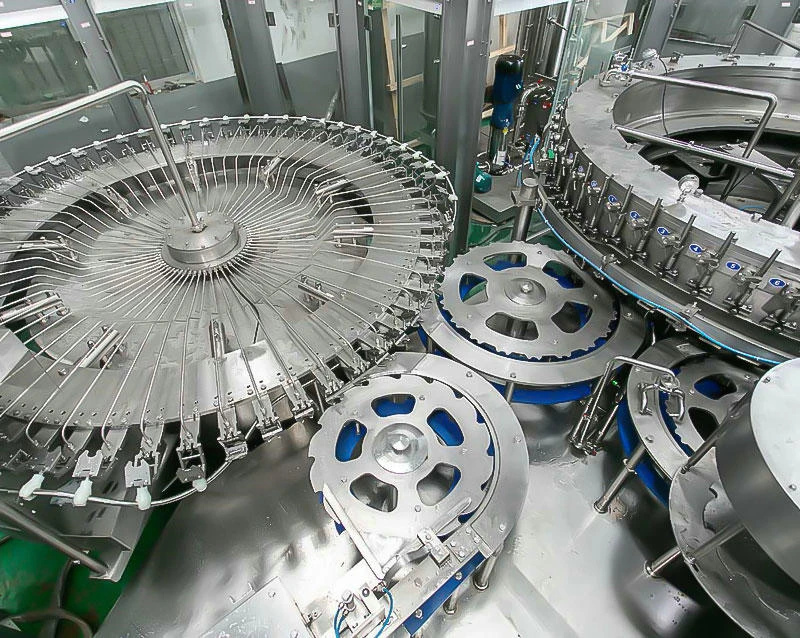

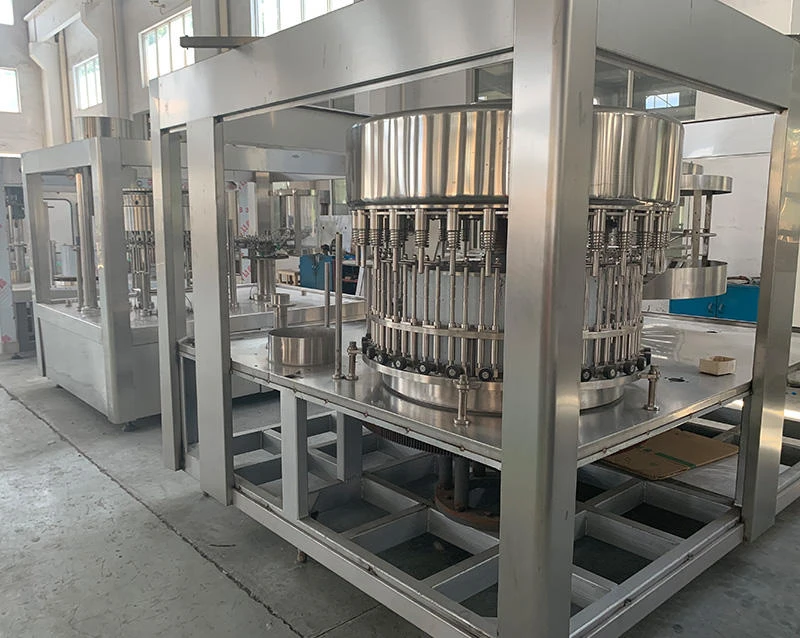

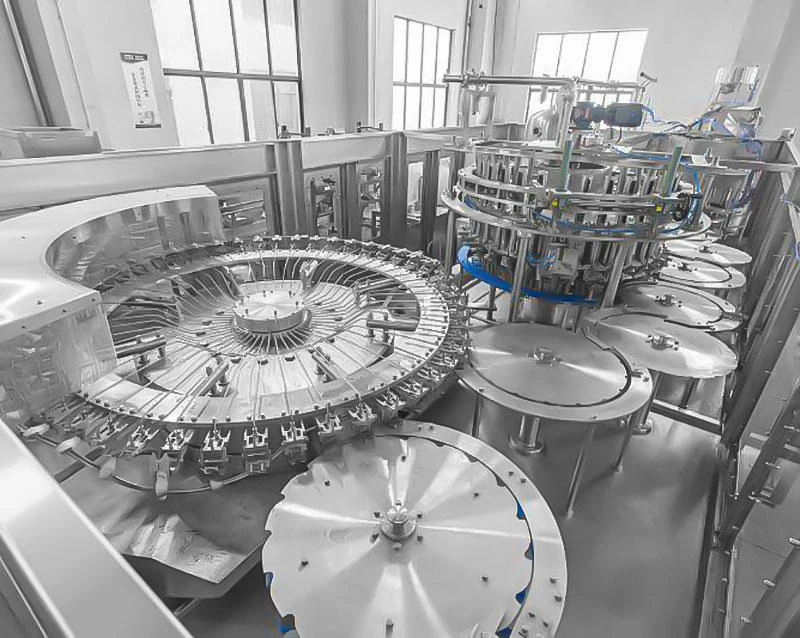

Detail ShowMaster Packing Co.,Ltd.
